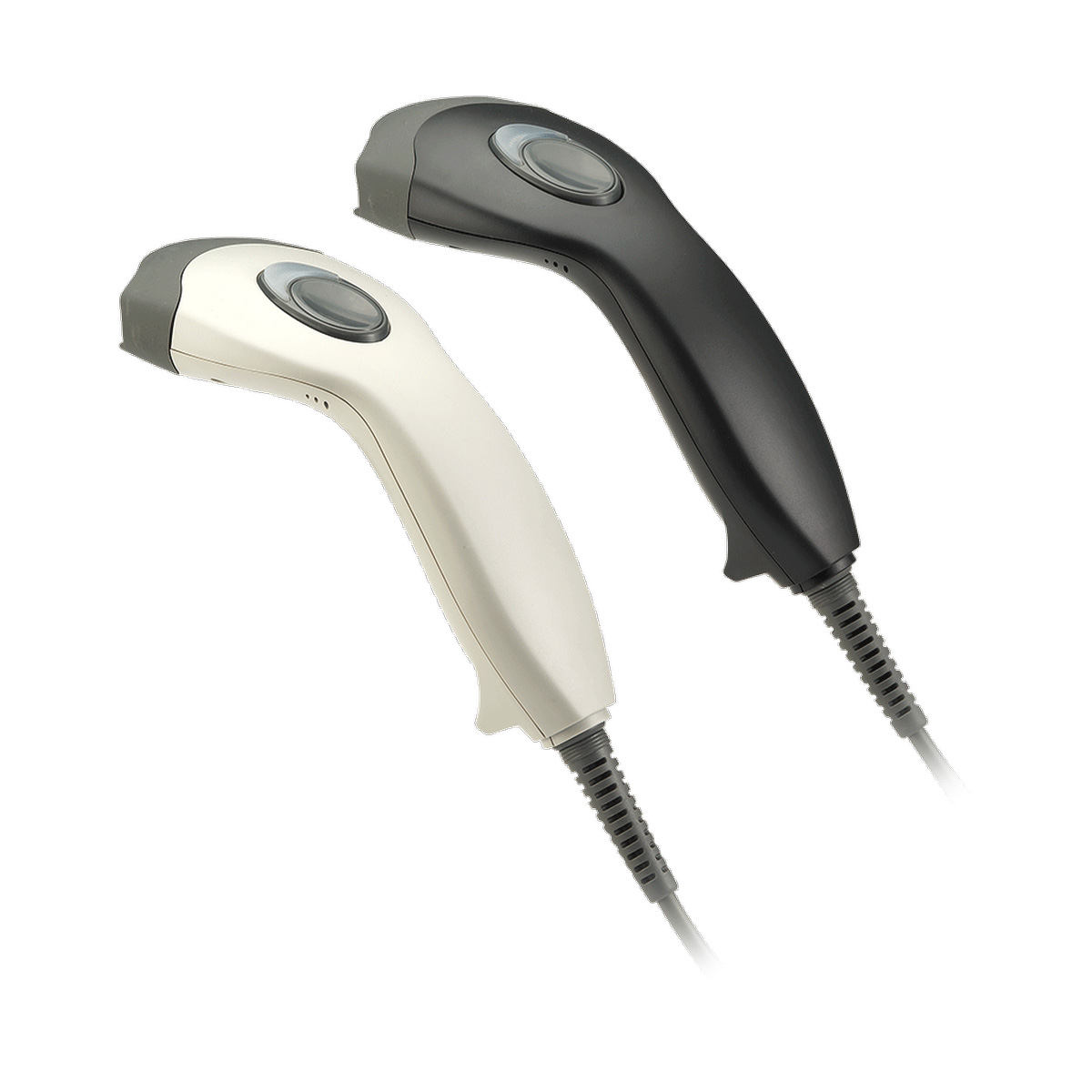

Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability.
At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.
It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.
• Proprietary Ultrascan decoding technology
• Streamline design and Large trigger for effortless operation
• 32-bit micro processor unit
• Analog image capture technology

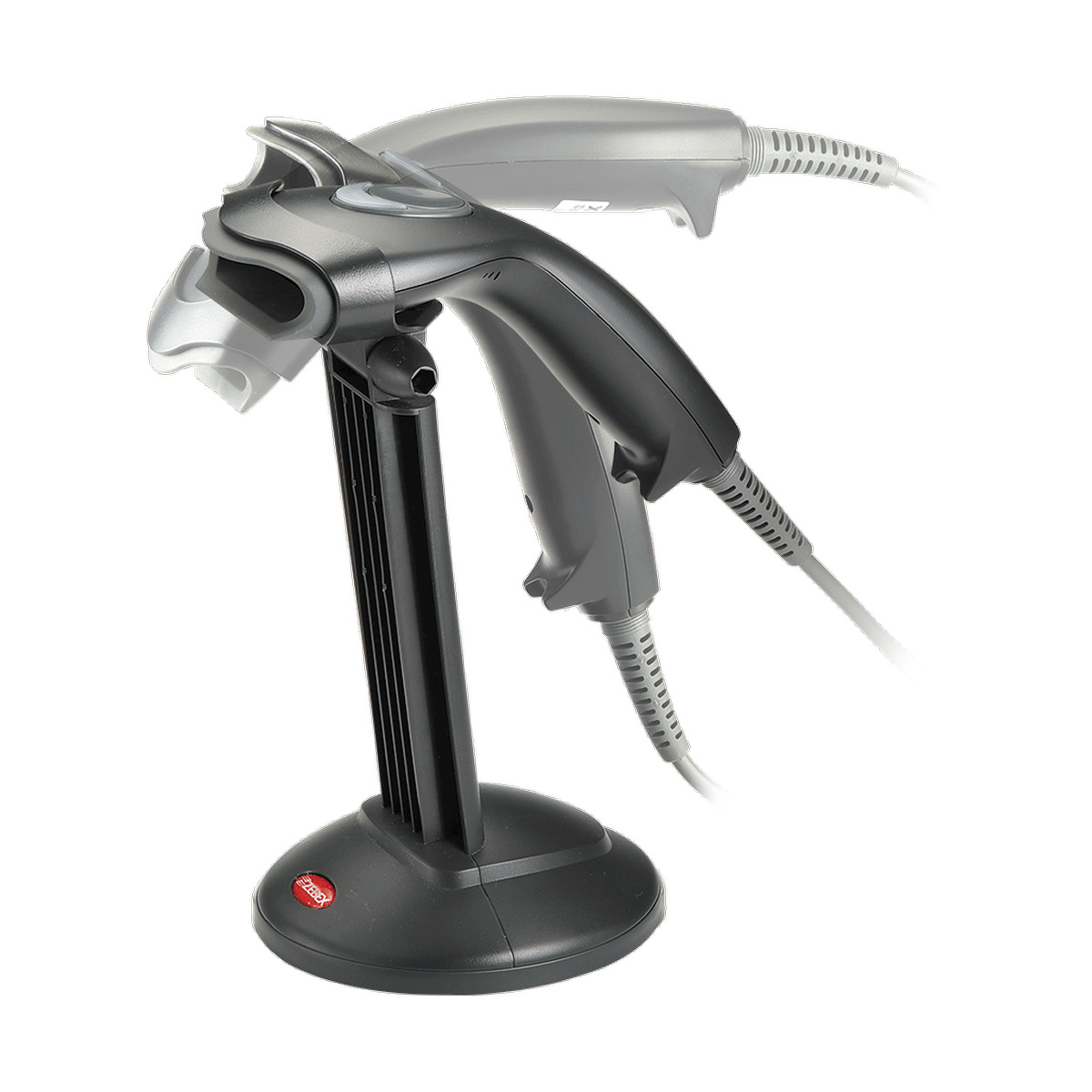

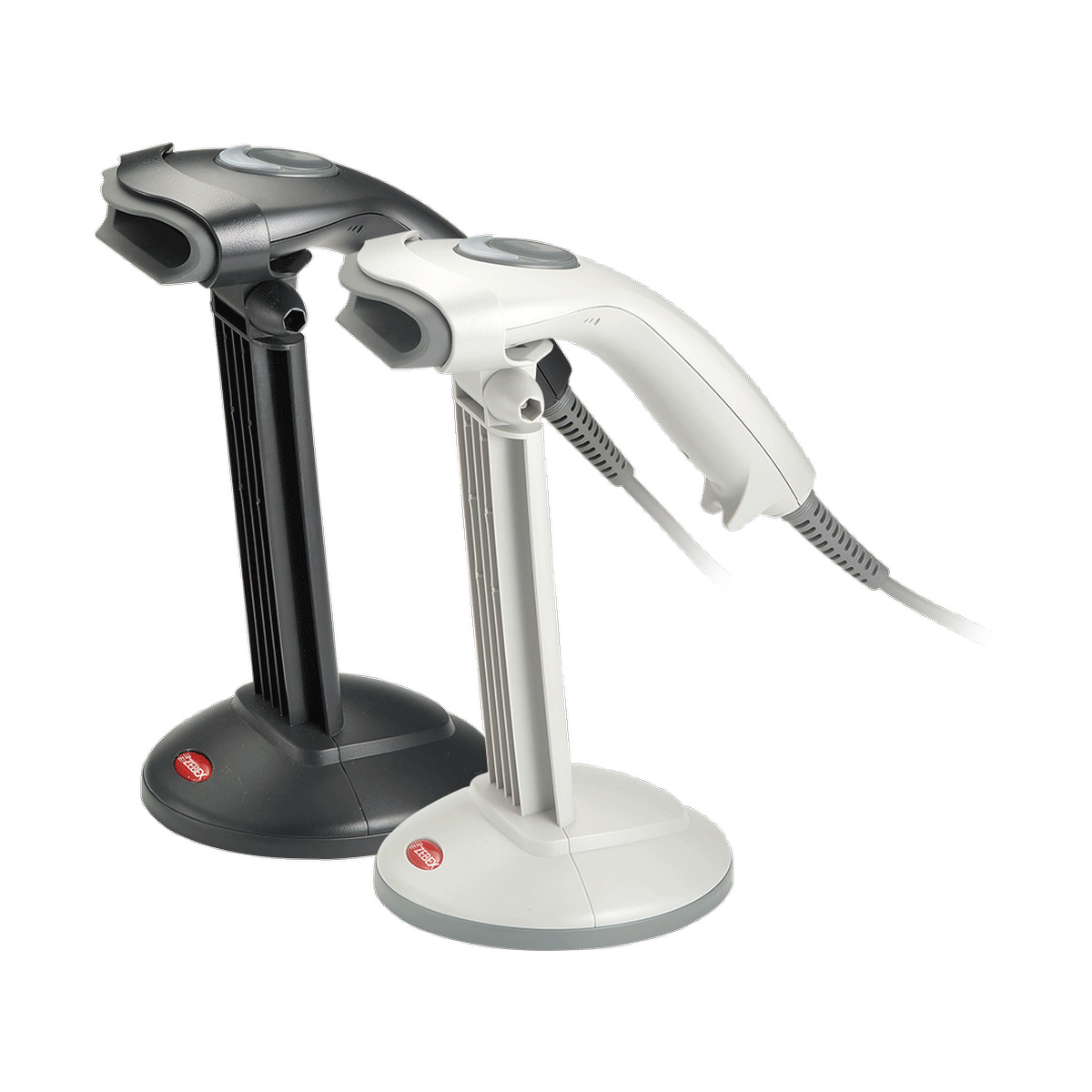

• Support presentation scan mode
• 0 – 100,000 Lux light immunity
• Captures barcodes on mobile phone, tablet, or computer screens
| Illumination Element | ||
|---|---|---|
| 617 nm visible LED | ||
| Optical System | ||
| Linear CCD array | ||
| Microprocessor | ||
| 32-bit | ||
| Depth of Field | ||
| 4 mil: 0 – 60 mm 5 mil: 0 – 100 mm 7.5 mil: 0 – 180 mm 10 mil: 0 – 220 mm 13 mil: 0 – 285 mm 20 mil: 0 – 350 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Scan Angle | ||
| 42° | ||
| Scan Rate | ||
| 330 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Blue LED | ||
| Programmable Operation | ||
| Programmable tone & beep time | ||
| System Interface | ||
| Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 152.3 × 64.4 × 104.9 mm (device only) | ||
| Weight (g) | ||
| 84 g (device only) | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±10% | ||
| Operating Current | ||
| 100 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant, VCCI, BSMI | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| 0 °C to 50 °C | ||
| Storage Temperature | ||
| -20°C to 60°C | ||
| Humidity | ||
| 5 to 95%, non-condensin | ||
| Light Level | ||
| Max. 100,000 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1.5M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
