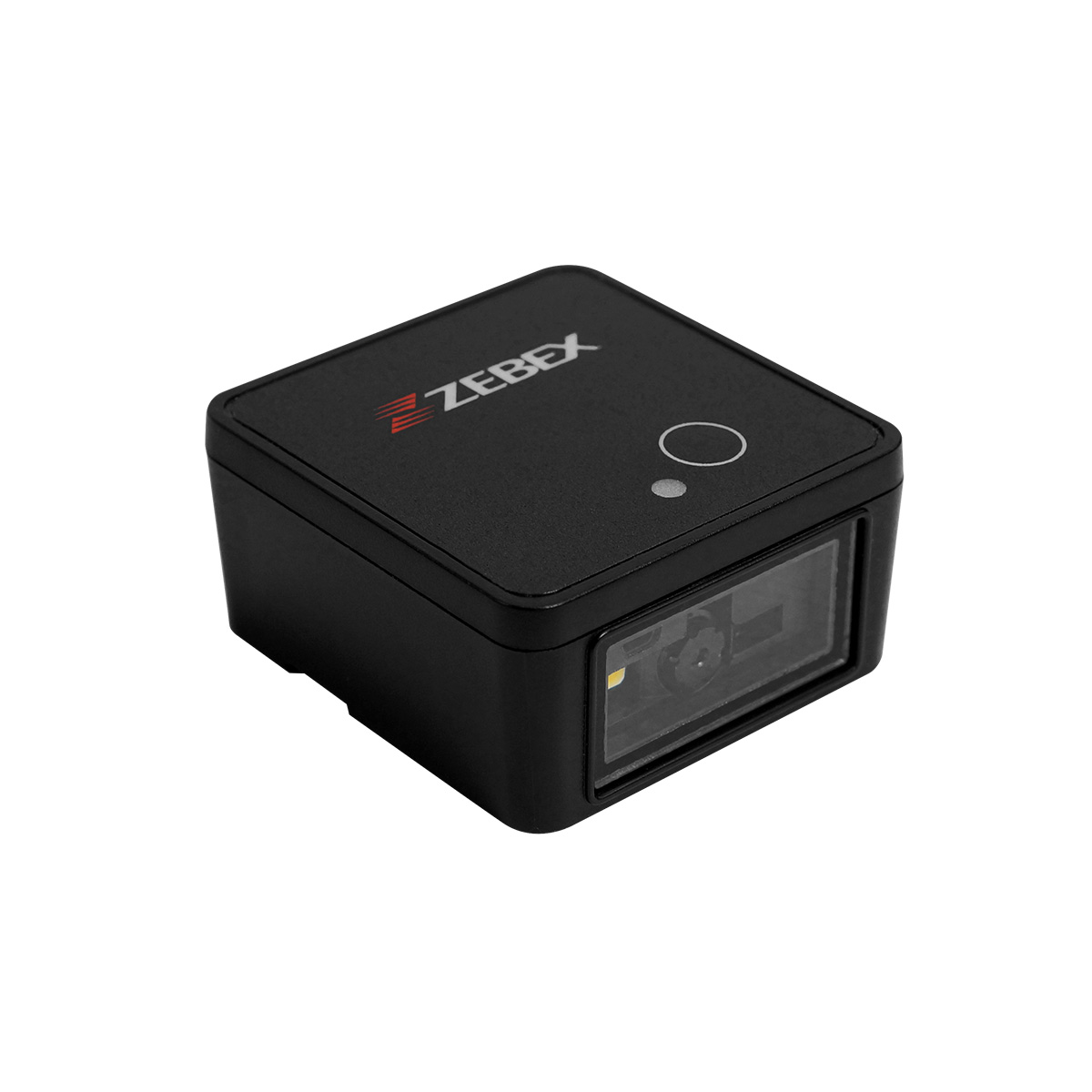

Tiny and easy to integrate, Z-5132 GT can fit virtually anywhere. Z-5132 GT includes great features such as Illumination & Aiming Lights off, IR Mode, and is great at reading 2D barcodes on phone screens. Best of all, it is IP65 protected, with an intensely dependable exterior to withstand dust, water spray, or water jets in multiple directions. It also supports the scanning of barcodes on medicine and vaccine. Z-5132 GT is perfect for embedded applications such as Factory Automation, Inventory Management, Mobile Payment, Self Check-in, Medical, and Price Checker Info Kiosk.
• IP65 small 2D module.
• Rugged type product.
• Exceptional motion tolerance.
• High speed and reliable performance on all common 1D and 2D codes.
• Captures barcodes on mobile phones, tablets, or computer screens.
• Healthcare label compliance: Supports GS1 and FMD format
| Aiming Element | ||
|---|---|---|
| 617 nm LED | ||
| Illumination Element | ||
| White LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 (5 mil) : 60 - 160 mm EAN 13 (13 mil) : 40 - 280 mm (Note : DOF may vary depending on environment condition and barcode quality.) | ||
| Min. Bar Width | ||
| 4 mils (Code39) | ||
| Scan Angle | ||
| 38.6° H x 24.9° V | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Blue LED | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| Micro USB | ||
| Dimensions H x W x L | ||
|---|---|---|
| 19 × 38 × 38.6 mm (device only) | ||
| Weight (g) | ||
| 22 g | ||

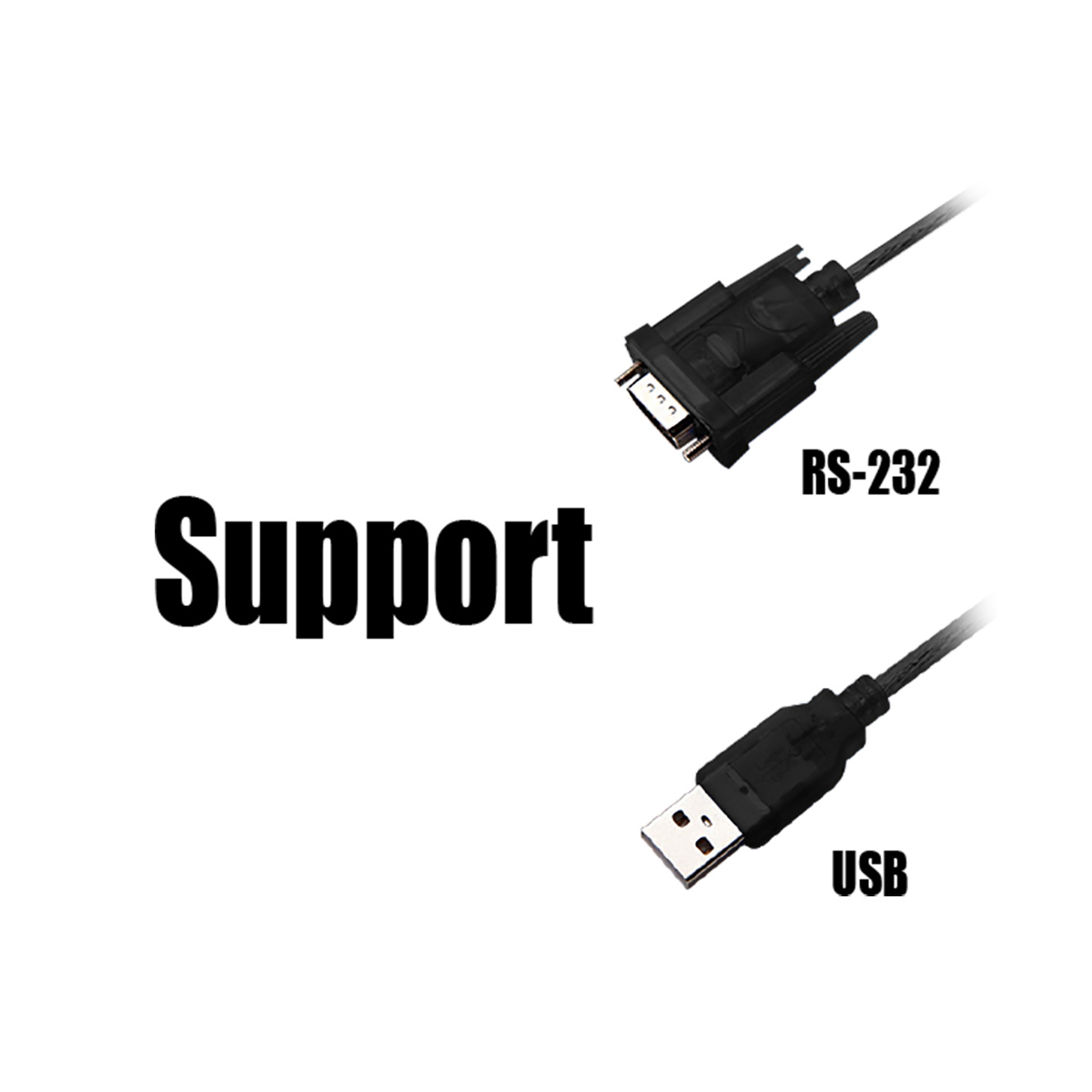

| Cable | ||
| Optional: USB, RS-232 | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 125 mA @ 5V (Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant; VCCI; BSMI, UKCA | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| -20°C – 50°C (-4°F – 122°F) | ||
| Storage Temperature | ||
| -40°C - 70°C (-40°F - 158°F) | ||
| Humidity | ||
| 5%~95% RH (non condensing) | ||
| Light Level | ||
| Max. 100,000 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1.5M drops | ||
| Environmental Sealing | ||
| IP65 | ||
| Shock | ||
| 3000g/ 0.3ms/ 6 faces | ||
| Vibration | ||
| 4.45 grms, 20-2000Hz, 3 axes | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland),ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32(Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5(Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5,Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar(Omnidirectional, Truncated, Stacked, Stacked Omnidirectional,Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Aztec (Standard, Inverse), Maxicode,Data Matrix/ECC 200 (Standard, Inverse), QR Code(Standard, Inverse, Micro)CODABLOCK FComposite Codes (CC-A, CC-B, CC-C) | ||
