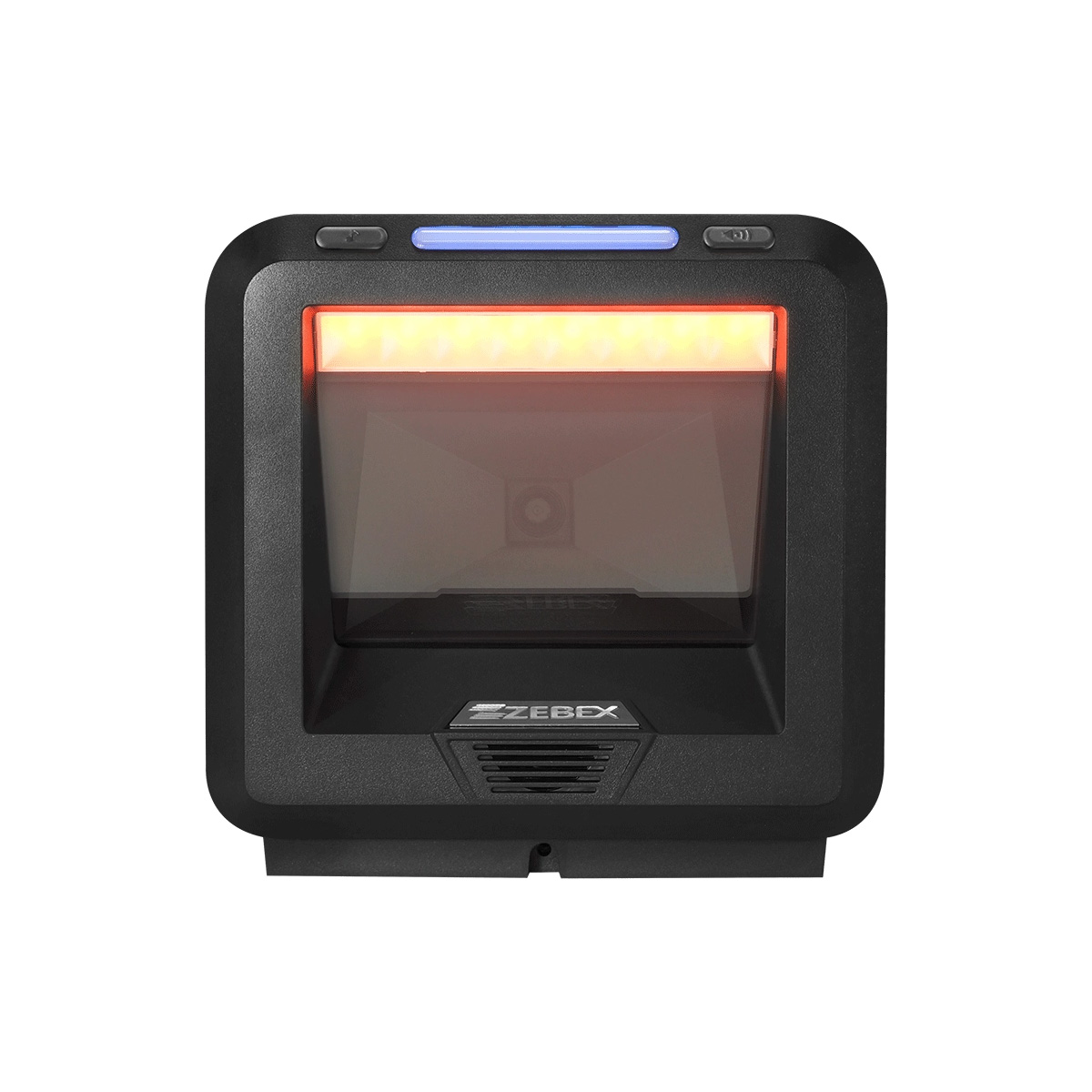

The Z-8182 on-counter scanner offers flexibility with 2D image reading. The new imagine technology allows versatile functionality with both 1D and 2D barcodes that satisfy your needs on regular market labels and consumer 2D coupons. Z-8182 not only provides efficiency with its instant decoding performance, it offers the convenience of excellent swipe speed and wide scan zone. This powerful device is ready for all heavy-loading challenges in retails.
• High speed and reliable performance on common 1D and 2D barcodes
• Exceptional motion tolerance, up to 4 meters per second
• Reads barcodes effortlessly off cell phone screens
• Healthcare label compliance: Supports GS1 and FMD format
| Illumination Element | ||
|---|---|---|
| 617 nm LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| 5 mil (Code39): 0 – 80 mm 13 mil (EAN13): 0 – 220 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 4 mil (Code 39) | ||
| Scan Angle | ||
| 56.0° horizontal; 37.0° vertical | ||
| Sensitivity | ||
| 360° (omnidirectional rotational sensitivity) | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Beeper (Buzzer), LED (Blue/ Red) | ||
| Programmable Operation | ||
| Beeper tone & volume | ||

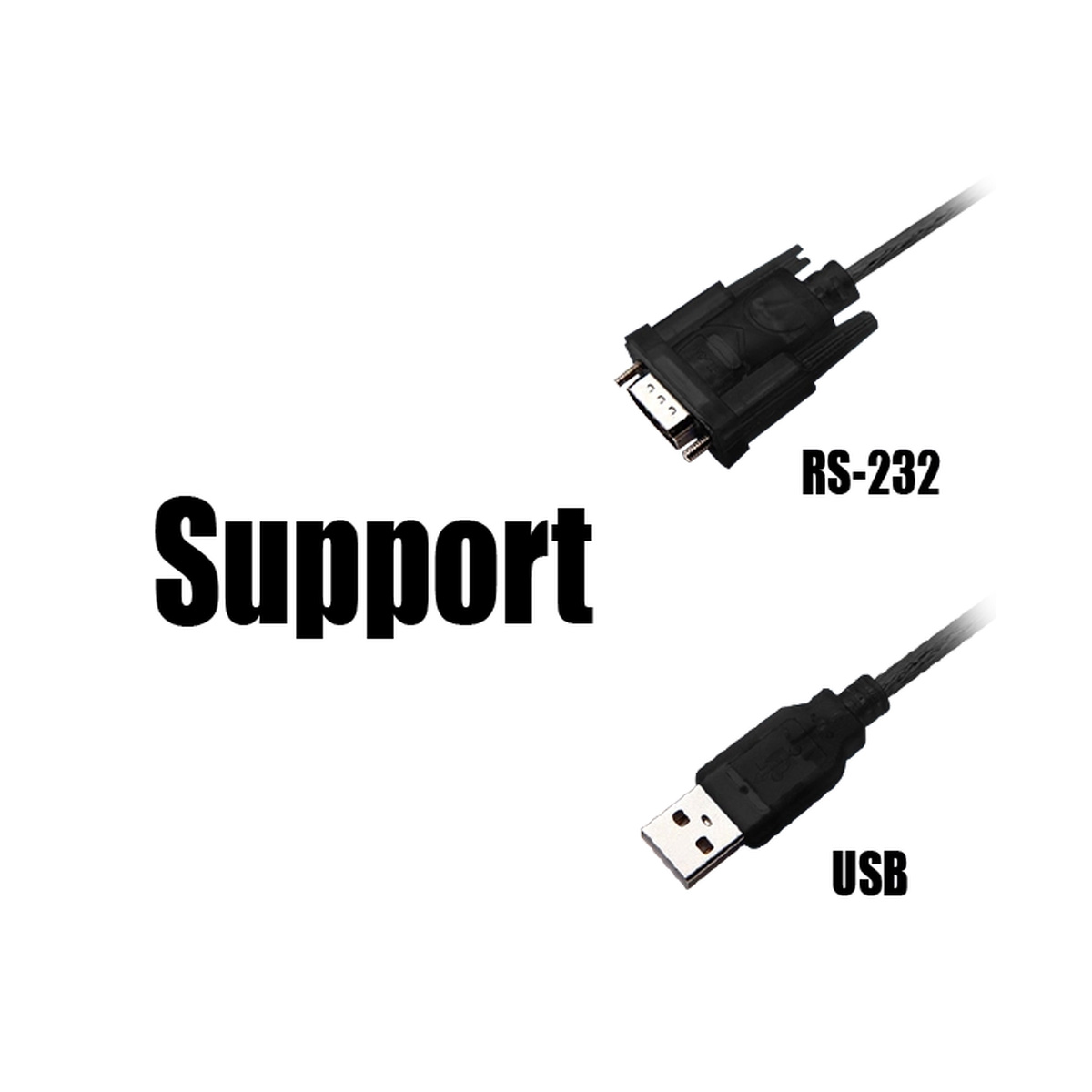

| System Interface | ||
| RS-232, USB | ||
| Motion Tolerance | ||
| 4.0 M/S | ||
| Dimensions H x W x L | ||
|---|---|---|
| 151.8 x 152.2 x 85.0 mm | ||
| Weight (g) | ||
| 470 g | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 190 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant; VCCI; BSMI | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| 0° C ~ 50° C (32°F – 122°F) | ||
| Storage Temperature | ||
| -40°C - 70°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| 0 - 100,000 Lux ( fluorescence ) | ||
| Drop Durability | ||
| Designed to withstand 1.0M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5 IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, Micro PDF417, Composite Codes Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (CC-A, CC-B, CC-C), (Standard, Inverse), QR Code (Standard, Inverse, Micro) | ||
