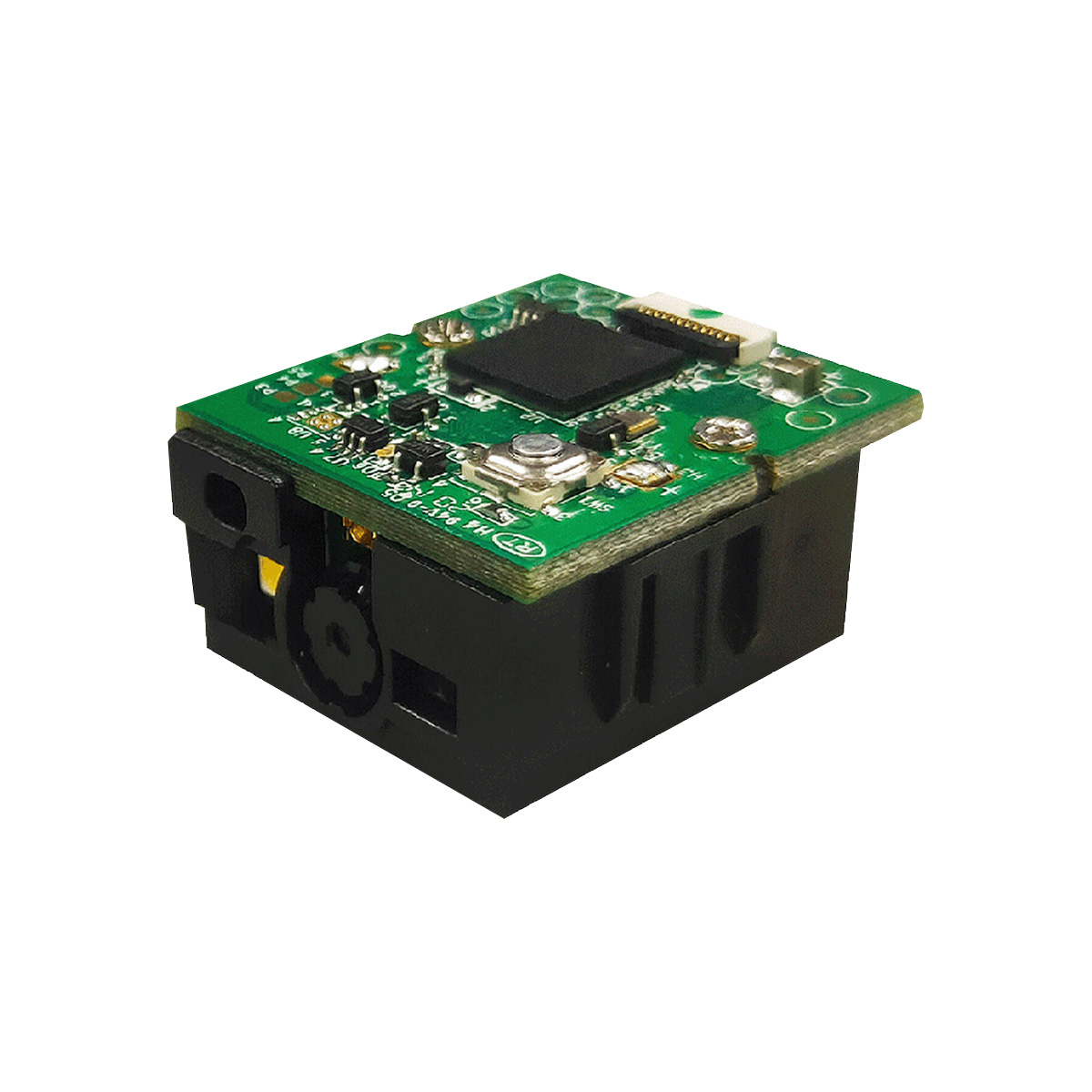

High scanning speed without compromising performance, Z-5112 GT is a powerful 2D image scan engine that easily decodes most 1D and 2D barcodes with intuitive aiming accuracy. It also supports standard serial and USB interfaces that are compatible with most hardware platforms. The compact dimensions can be effortlessly designed into most space-constrained products, including mobile computers, kiosks, lottery machines, and more. Z-5112 GT is the perfect solution for any industry.
• Easy integration
• Built-in decoder for hassle-free implementation
• Flexible interface communications
• Outstanding 1D and 2D scanning performance
• Captures barcodes on mobile phones, tablets, or computer screens
• Healthcare label compliance: Supports GS1 and FMD format
| Illumination Element | ||
|---|---|---|
| White LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 (5 mil) : 60 - 160 mm EAN 13 (13 mil) : 40 - 280 mm (Note : DOF may vary depending on environment condition and barcode quality.) | ||
| Min. Bar Width | ||
| 4 mils (Code39) | ||
| Scan Angle | ||
| 38.6° H x 24.9° V | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Blue LED | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| Z-5112GT : ( Interface : 12 pin ZIF) RS-232 (TTL level), USB HID, USB Virtual com, OPOS, JPOS Z-5112GT (U) : (Interface : Micro USB) USB HID, USB Virtual com, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|

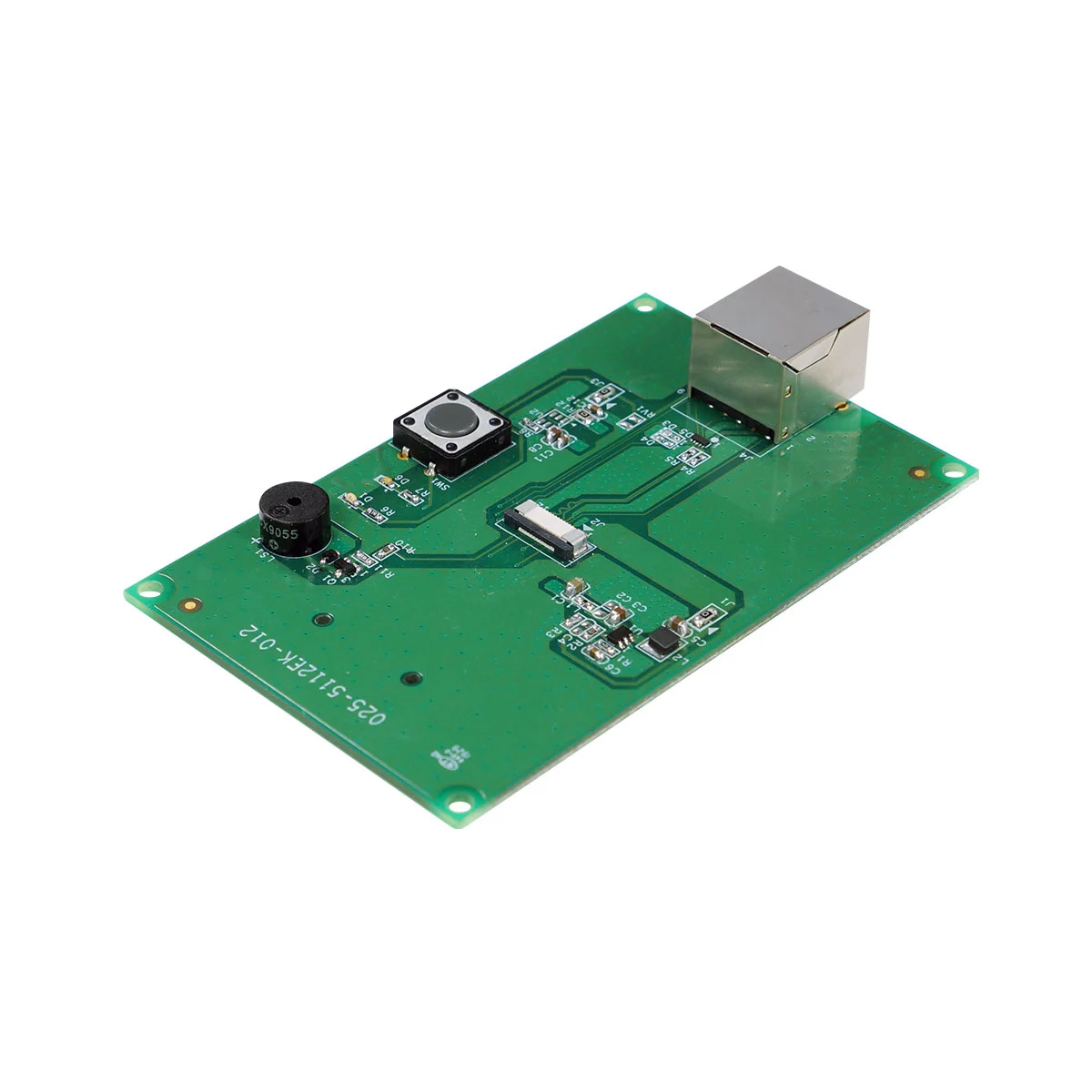

| 24(W) x 13.3(H) x 27(D) mm 30(W) x 13.3(H) x 27(D) mm (with I/O board) | ||
| Weight (g) | ||
| 6g / 8.5g (with I/O board) | ||
| Input Voltage | ||
|---|---|---|
| 3.3 VDC / 5 VDC (with I/O board) | ||
| Operating Current | ||
| 180 mA @ 3.3V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE, FCC, VCCI, BSMI, EN55024, EN55032, UKCA | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| -10°C – 50°C (14°F – 122°F) | ||
| Storage Temperature | ||
| -40°C - 70°C (-40°F - 158°F) | ||
| Humidity | ||
| 5%~95% RH (non condensing) | ||
| Shock | ||
| 3000g/ 0.3ms/ 6 faces | ||
| Vibration | ||
| 4.45 grms, 20-2000Hz, 3 axes | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland),ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32(Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5(Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5,Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar(Omnidirectional, Truncated, Stacked, Stacked Omnidirectional,Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Aztec (Standard, Inverse), Maxicode,Data Matrix/ECC 200 (Standard, Inverse), QR Code(Standard, Inverse, Micro)CODABLOCK FComposite Codes (CC-A, CC-B, CC-C) | ||
