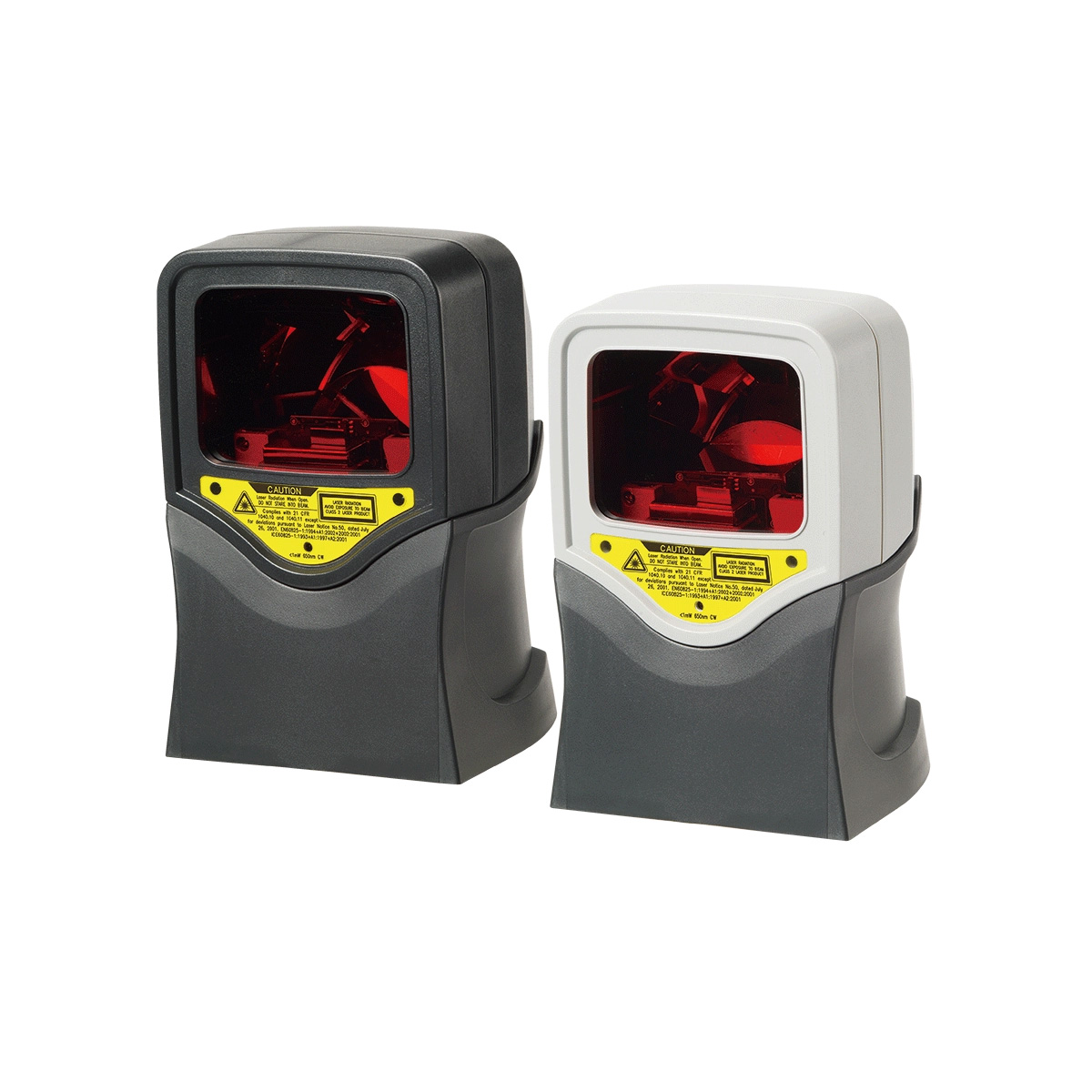

Z-6010 は全方向スキャナーで、ボタンを押すとシングル ラインリーダーとしてもお使いいただけます。リアルタイム デコーディングを確実に行い、そのサイズに反比例した最高のスキャン性能を提供します。
• 全方向およびシングルライン スキャンの両方をサポート
• アグレッシブなスキャン性能

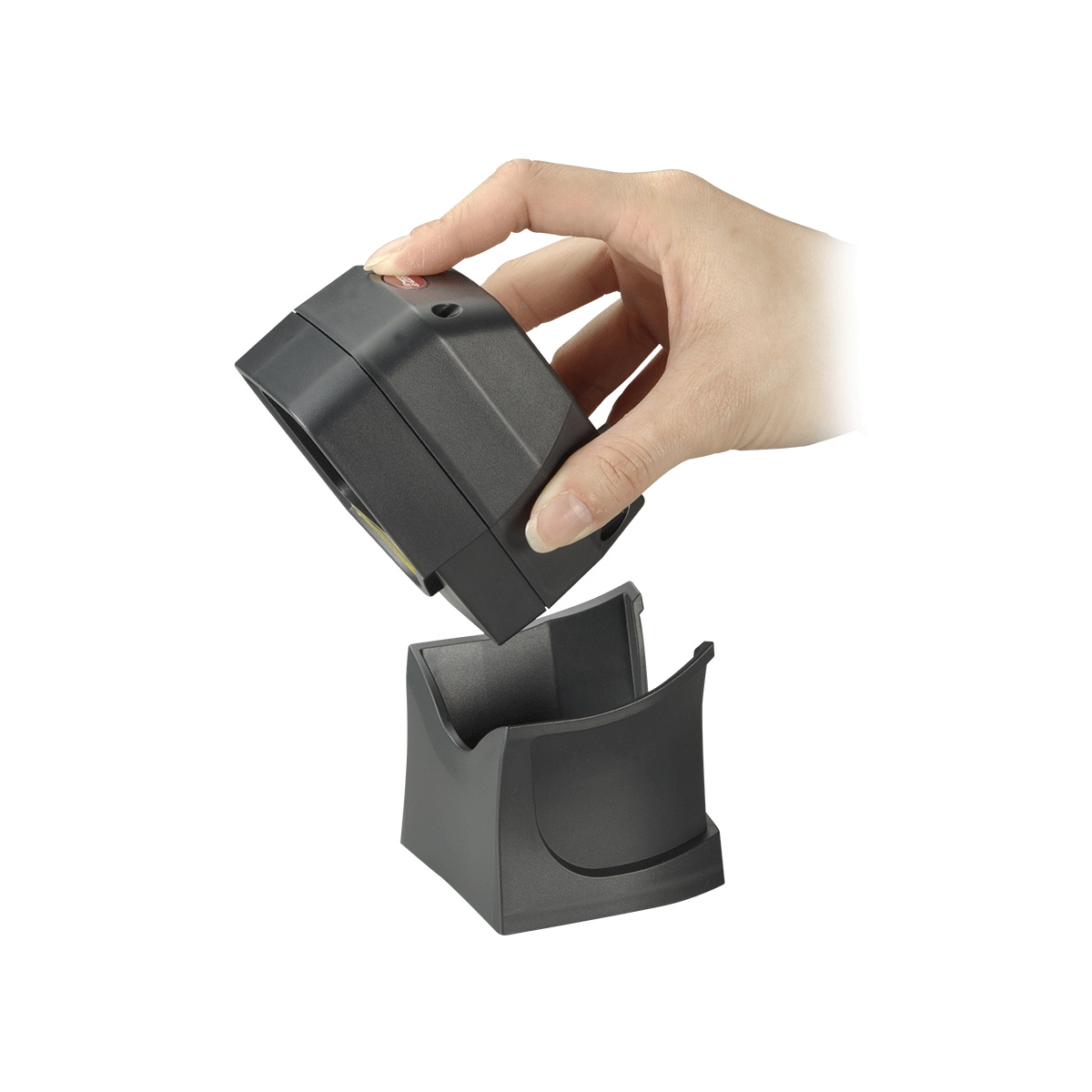

• 単独でハンズフリー スキャナーまたはスキャニング装置のスキャン モジュールとして動作

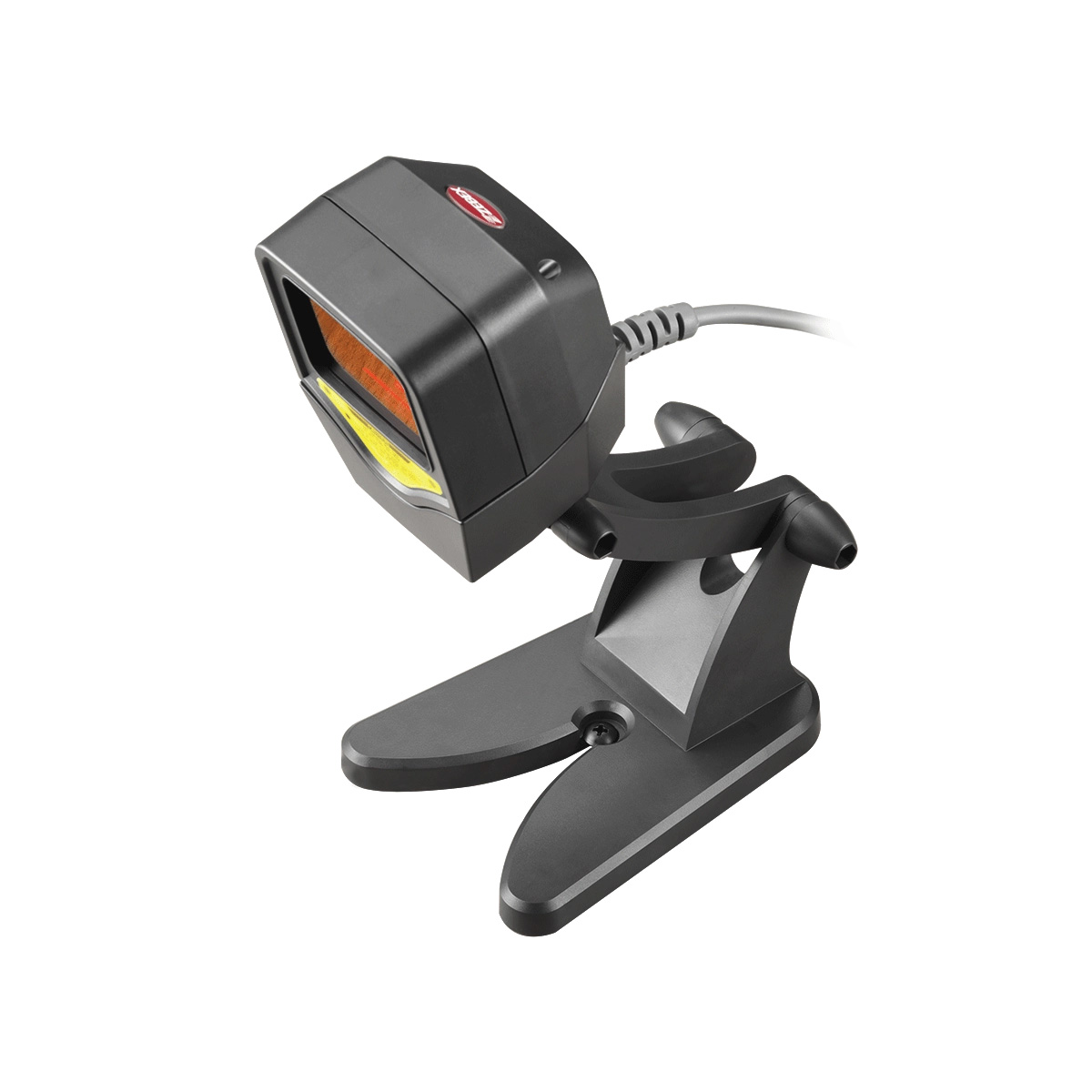

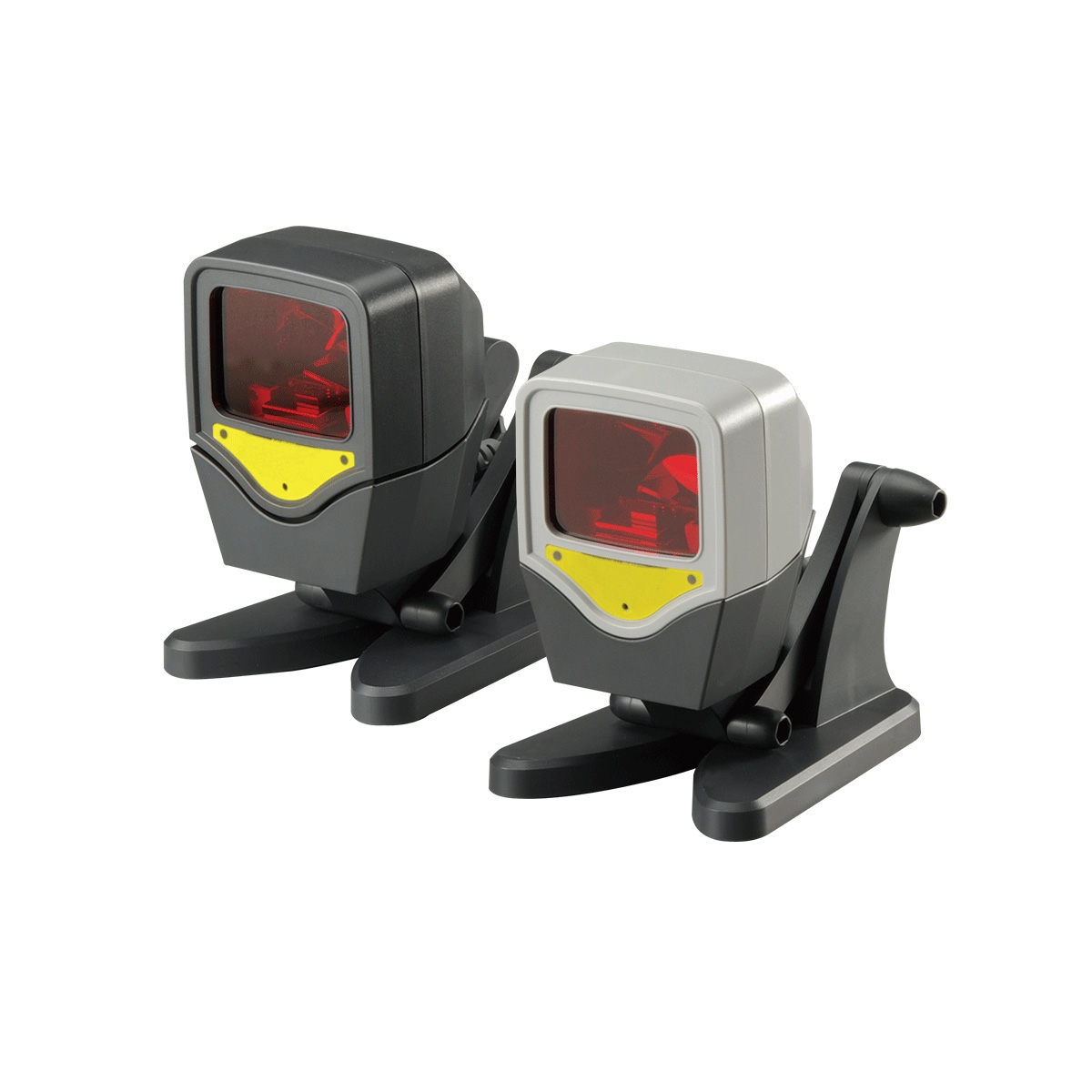

• オプションの 3D 回転クレードル
| Light Source | ||
|---|---|---|
| 650 nm visible laser diodes | ||
| Depth of Field | ||
| 5 mil: 40 – 90 mm 7.5 mil: 0 – 150 mm 10 mil: 0 – 180 mm 13 mil: 0 – 200 mm 20 mil: 0 – 280 mm Note: DOF may vary depending on environment condition and barcode quality. |
||
| Scan Lines | ||
| 20 | ||
| Scan Pattern | ||
| 5 directions of scan field | ||
| Scan Rate | ||
| 1400 scans per second/74 scans per second(single-line) | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED (blue & red) | ||
| Programmable Operation | ||
| Beeper tone & volume | ||
| System Interface | ||
| Keyboard, RS-232, HID USB, wand | ||
| Dimensions H x W x L | ||
|---|---|---|
| 110.9 × 70.0 × 65.8 mm (on fixed stand)122.2~253.0 × 74.0 × 7120.3~163.3 × mm (on optional cradle) | ||
| Weight (g) | ||
| 200 g (on stand)350 g (on optional cradle) | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Power Consumption | ||
| 1.0 watts | ||
| Operating Current | ||
| 200 mA @ 5 V | ||
| Laser Class | ||
|---|---|---|
| CDRH Class IIa; IEC 60825: Class 2 | ||
| EMC | ||
| CE & FCC DOC compliant, VCCI, BSMI | ||
| Operating Temperature | ||
|---|---|---|
| 0 °C to 40 °C (32°F – 104°F) | ||
| Storage Temperature | ||
| -20°C - 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (no dewing allowed) | ||
| Light Level | ||
| Up to 4,500 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1.5M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded | ||
