Z-5130

Linear Image Scan Module

Z-5130 Linear Image Scan Module
Z-5130 Linear Image Scan Module
Z-5130 Linear Image Scan Module
Z-5130 Linear Image Scan Module
Z-5130 has ZEBEX specially designed CCD scan engine with light beam bright and clear as laser beam that gives user best visual indication and its powerful high resolution CCD acts in outstanding performance. The Z-5130 has all the flexibility and future upgradeability, and it is certainly the greatest choice for embedded products. Gaming machines, lottery machines, handheld terminals and many more compact applications are now on your hand.

• World's smallest CCD scan module in its class
• A "test" button on top for performance testing
• Small size and preserved mounting holes for easy installation
• Great CCD scanning performance and future upgradeability on firmware
• Industrial standard design
• Best for embedded applications, kiosks, lottery machine, and others where space is limited
• Proprietary Ultrascan decoding technology
• Captures barcodes on mobile phone, tablet, or computer screens

Specifications

Light Source
617 nm visible red LED; bright laser-imitated scanning line
Optical System
Linear CCD array
Microprocessor
32-bit
Depth of Field
4 mil: 50 – 115 mm
5 mil: 50 – 150 mm
7.5 mil: 50 – 210 mm
10 mil: 50 – 250 mm
13 mil: 50 – 320 mm
20 mil: 50 – 380 mm
Note: DOF may vary depending on environment condition and barcode quality.
Min. Bar Width
4 mil (Code 39, PCS=90%)
Scan Rate
330 scans/sec
Print Contrast
30% @ UPC/EAN 100%
Indicator
“OK”, “NG”, “PWR” and “TEST” button
Programmable Operation
Programmable tone & beep time
Connector

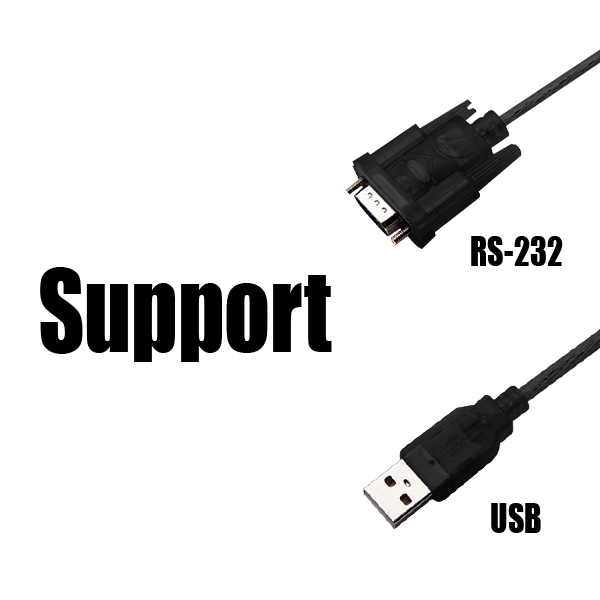

RS-232, HID USB, USB Virtual COM, OPOS, JPOS
Dimensions H x W x L
15.8 x 39.0 x 26.6 mm
Weight (g)
15 g (cable excluded)
Input Voltage
5 VDC ± 10%
Operating Current
120 mA typical
EMC
CE & FCC DOC compliant, VCCI, BSMI
Operating Temperature
0°C – 50°C (32°F – 122°F)
Storage Temperature
-20°C - 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
0 – 100,000 Lux
1D Barcode
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen

Downloads

Technical Support
Data Sheet
2018-01-30
Buyer's Guide
2018-01-30
Dimension
2018-01-30
User's Manual
2018-01-30
Service Guide
2018-01-30
DOF/WOF Drawings
2018-01-30
Product Certificates
CE
FCC
Software
Standard firmware
2019-01-10
Virtual COM Driver
Emulates COM port connection when the scanner is connected to PC via USB cable. This driver works on Intel 32 / 64 bit processor based machine with Windows XP, Windows 7, and Windows 8. For Windows 10 users, please use the native CDC driver included in the Windows 10.
2018-01-30
EzSet 1D
Utility program for setting up and testing ZEBEX scanners. Note: RS-232 Cable required, USB connection for firmware update only. This driver works on Intel processor-based machine with Windows XP, Windows 7, Windows 8, and Windows 10.
2018-01-30
