Introduction

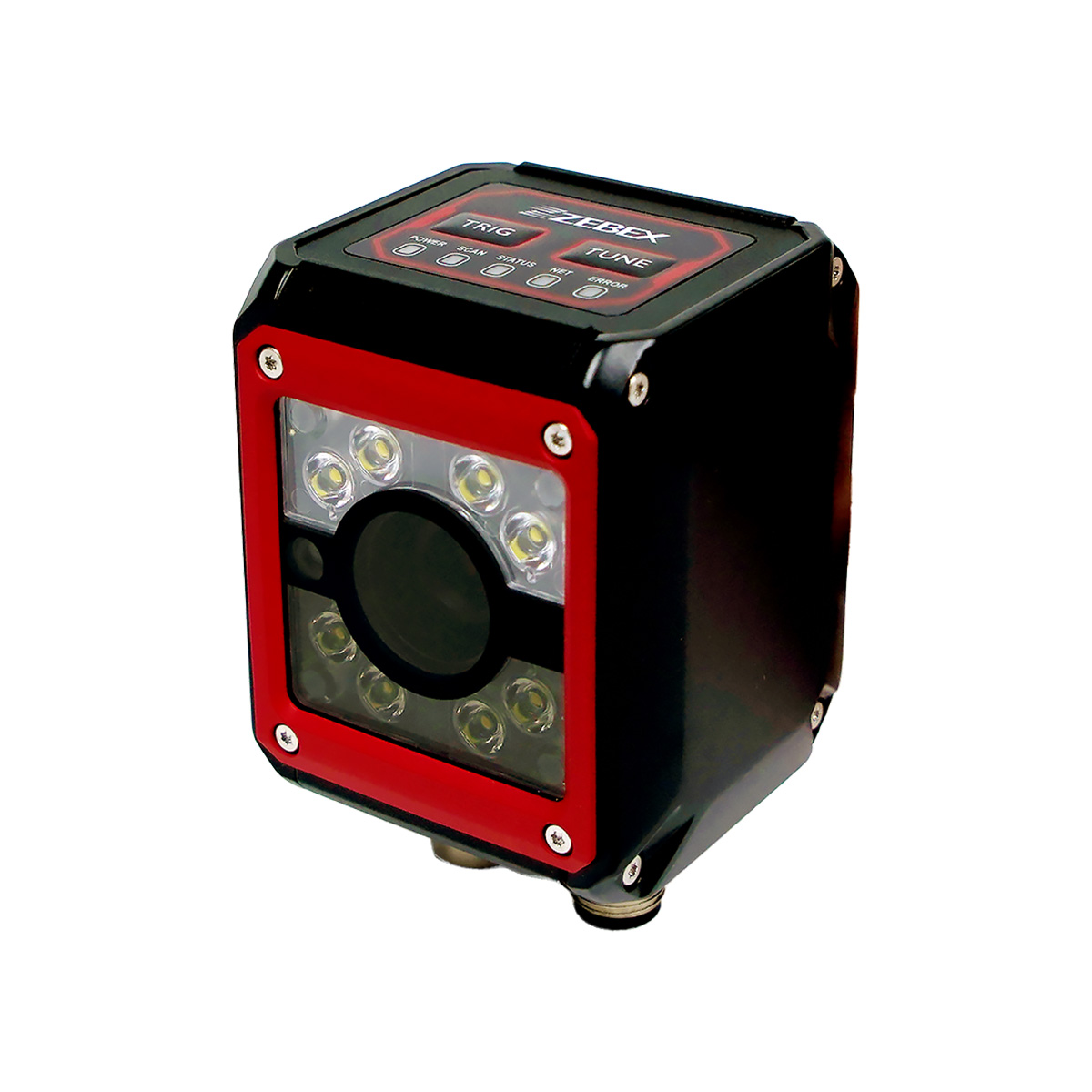

ZX-3020

2D Image Fixed Industrial Scanner

The ZX-3020 is a high-performance industrial code reader built
for fast, accurate decoding even in the most challenging
production environments. Powered by a quad-core processor
and advanced deep learning algorithms, it excels at reading
codes that are damaged, low contrast, distorted, or located on
irregular surfaces with remarkable reliability.

Designed for robustness, the ZX-3020 is housed in an
IP67-rated enclosure that protects it from dust and water,
ensuring reliable operation in harsh industrial conditions. It
supports a broad working distance from 100 mm to 1000 mm,
with mechanical focus adjustment to maintain sharp image
quality across various installation setups and product sizes.

Its flexible lighting system is one of its standout features. Users
can independently control four groups of lights with up to 16
customizable lighting patterns. This adaptability allows optimal
illumination for both bright-field and dark-field conditions,
improving code visibility on diverse surface textures and lighting
environments.

• 100–1000 mm working distance with adjustable lenses
• high-speed decoding with quad-core processor
• 4-zone lighting with 16 configurable patterns
• One-click setup for fast calibration
• Supports 32-device network integration
