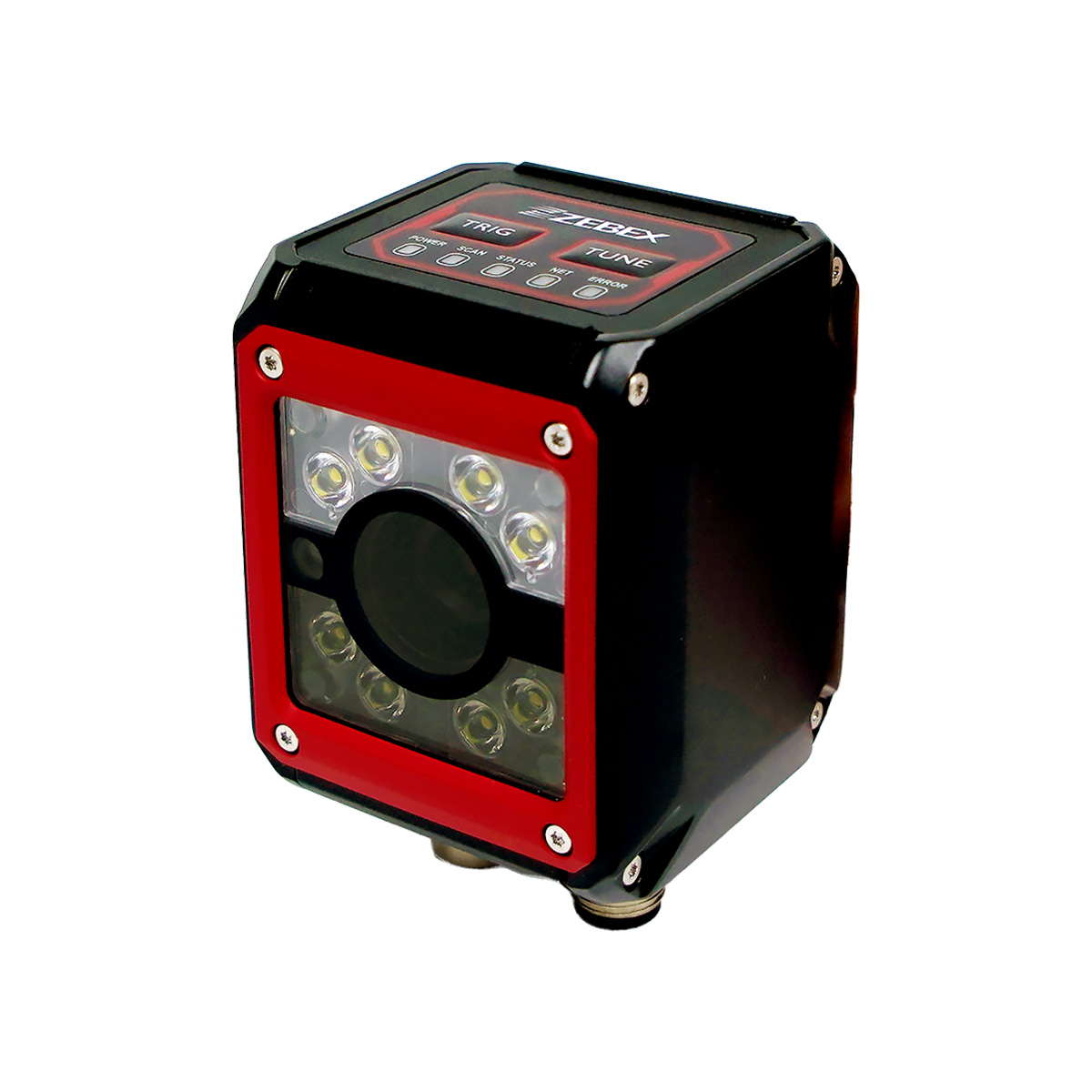

Discover the ZX-3020 industrial code reader. Featuring AI deep learning, a 100–1000mm working distance, and 16 lighting patterns for harsh environments.
| Illumination Element | ||
|---|---|---|
| Polarized White Light | ||
| Image Sensor | ||
| 1280 x 800 CMOS | ||
| Depth of Field | ||
| 100 mm ~ 1000mm ( Auto Focus ) | ||
| Scan Angle | ||
| 480 x 300 mm ( @1000 mm ) | ||
| Indicator | ||
| 5 status LEDs | ||
| System Interface | ||
| RS232, Ethernet ( TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MEMSEC/SLMP, Fins, Serial ) | ||
| Dimensions H x W x L | ||
|---|---|---|
| 58 x 53.5 x 83 mm | ||
| Weight (g) | ||
| about 220g | ||
| Input Voltage | ||
|---|---|---|
| 24 VDC | ||
| Power Consumption | ||
| 15W | ||
| EMC | ||
|---|---|---|
| CE, FCC, VCCI, BSMI, UKCA | ||
| Operating Temperature | ||
|---|---|---|
| 0℃ ~ 45 ℃ | ||
| Storage Temperature | ||
| -20℃ ~ 70℃ | ||
| Humidity | ||
| 5% ~ 95% RH ( non-condensing ) | ||
| Light Level | ||
| 0 ~ 100,000 Lux | ||
| Environmental Sealing | ||
| IP67 | ||
| 1D Barcode | ||
|---|---|---|
| Code 128, Code 39, Code 93, Interleaved 2 of 5, EAN 13, EAN 8, PharmaCode, UPC-A, UPC-E, UPC-EAN Extension, Codabar | ||
| 2D Barcode | ||
| QR, Data Matrix, PDF417, Micro QR, Aztec, MaxiCode | ||
