Introduction

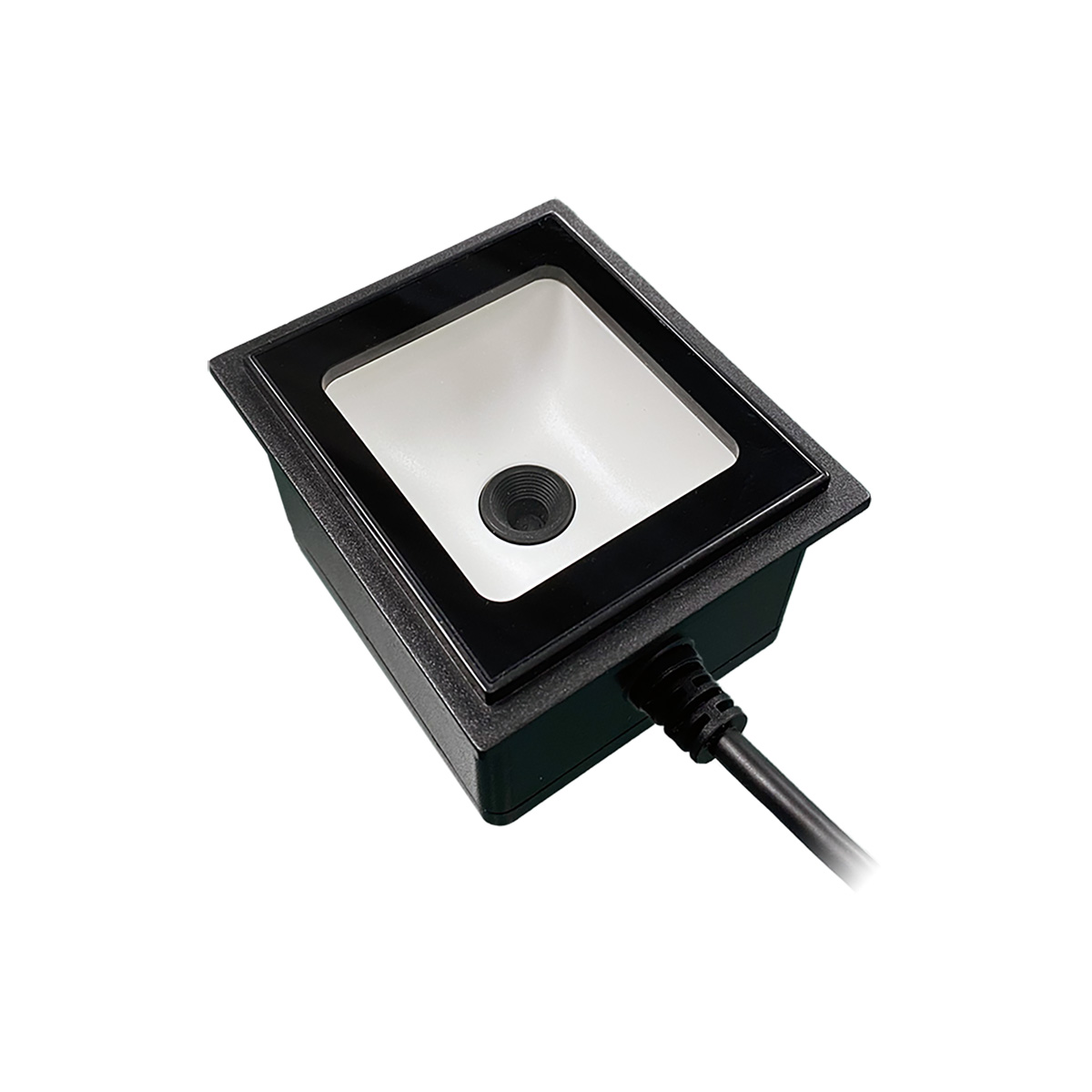

Z-5422

2D Image Scan Module

The Z-5422 is a compact 2D embedded scan module designed to deliver fast and reliable barcode decoding performance. It supports all major 1D barcodes and standard 2D symbologies, including PDF417, QR Code, and Data Matrix. With its high-performance CMOS image sensor and optimized illumination system, it ensures stable reading across a wide range of media, including paper labels, plastic surfaces, and LCD/mobile screens.
Featuring a compact all-in-one design, the Z-5422 integrates a decoding engine and USB interface within a minimal footprint, making it easy to embed into space-constrained devices. Its large scan window and optimized optical design provide intuitive aiming and efficient scanning performance, improving overall usability in high-traffic environments.
Built with IP65-rated protection, the Z-5422 is designed to withstand dust and water exposure, ensuring reliable operation in demanding environments. It is well-suited for a wide range of self-service and automation applications, including point-of-sale systems, kiosks, payment terminals, gaming machines, and other
embedded scanning solutions.
• Large scan window for intuitive and easy operation
• Supports barcode reading directly from mobile screens
• IP65-rated protection against dust and water
• Compact design for easy and flexible integration
• Fast and accurate decoding of 1D and 2D barcodes
• Stable performance under various lighting conditions
