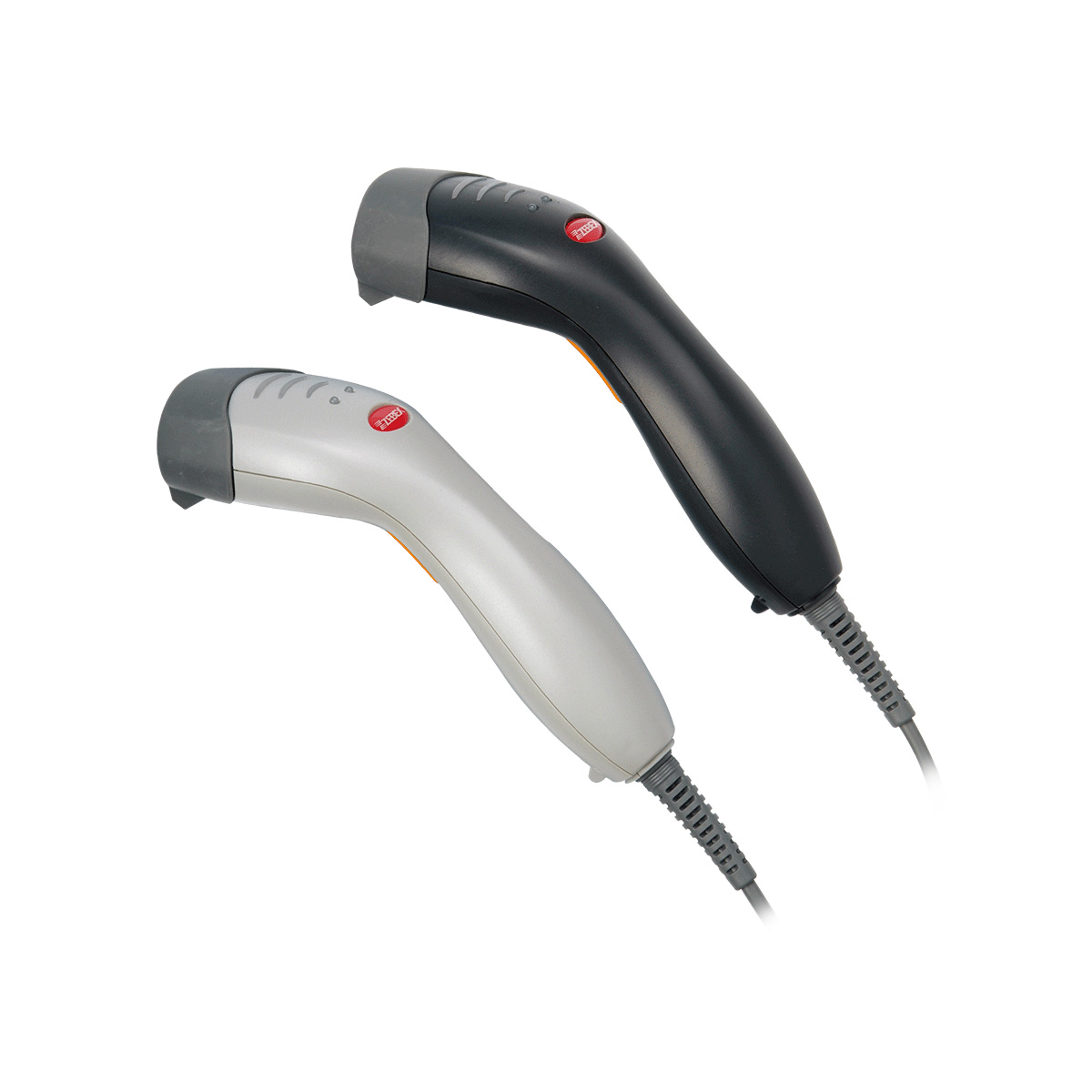

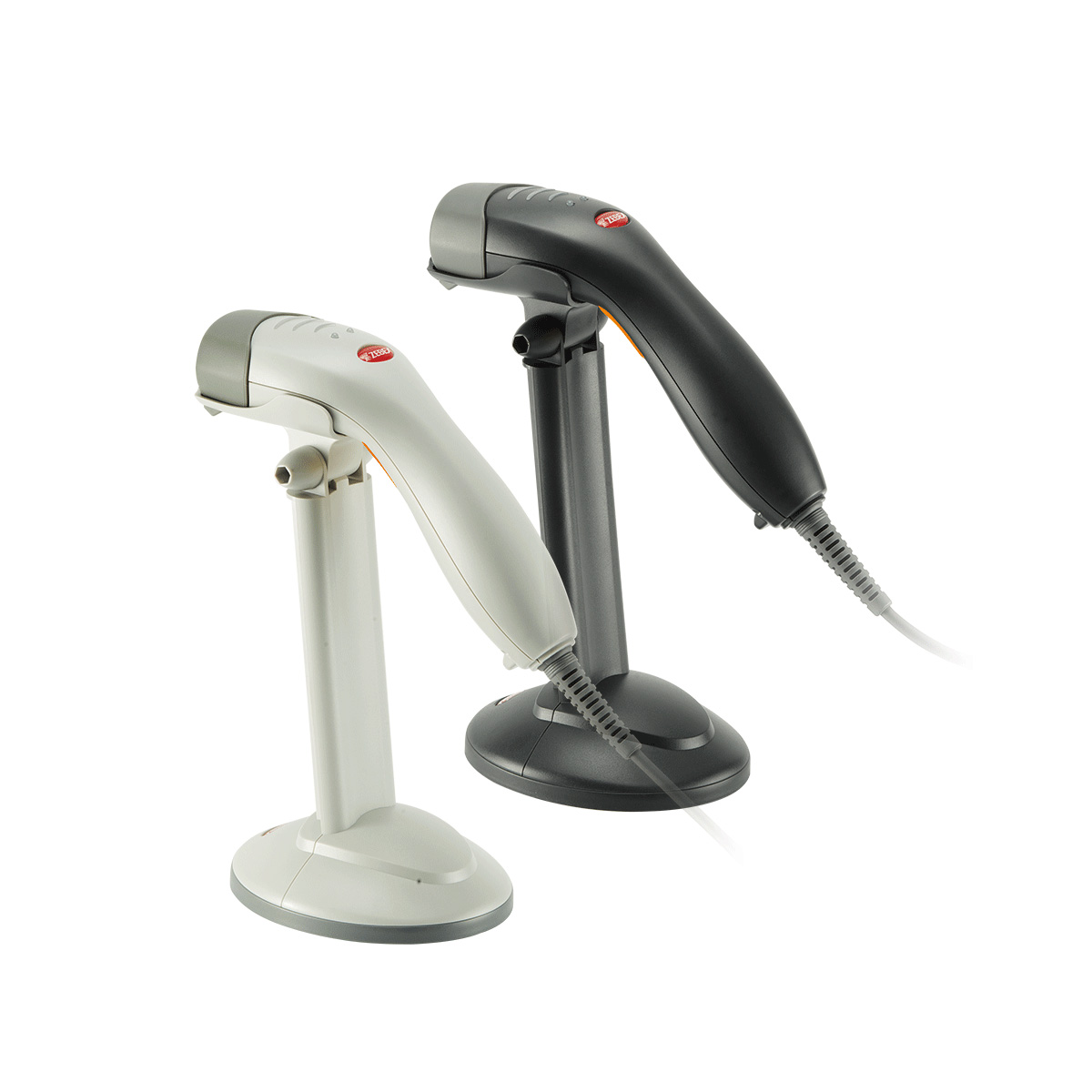

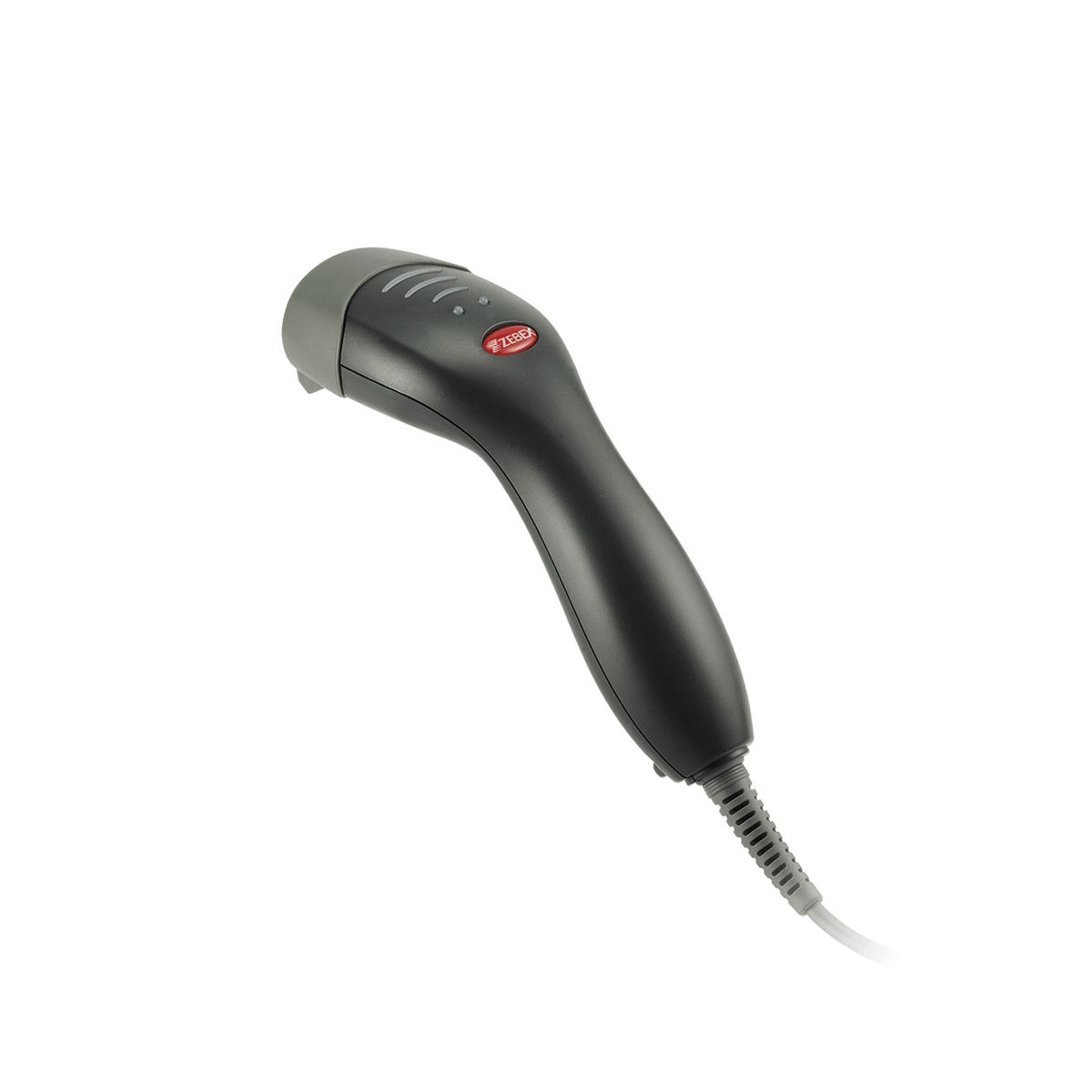

Z-3151HS具有強大的掃描引擎，是一支高階的手持式單線雷射條碼掃描槍。它充份運用多線式科技，將七條雷射光束合而為一，提供每秒高達500次的絕佳掃描性能。內建獨家專利的Z-SCAN+即時硬體解碼技術，能夠在第一時間精準解碼，確保一掃即成的無敵成績。32位元的微型處理器，可解譯市面上常見的各種一維條碼、GS1 DataBar及PDF417。
• 可解譯絕大多數的一維條碼，包括GS1 DataBar與PDF417
• 卓越的掃描性能
• 獨家專利Z-SCAN+即時硬體解碼科技
• 堅固耐用、符合手部人體工學的流線設計
• 支援多種傳輸介面可彈性運用
• 榮獲2009年德國工業產品設計獎（iF）的肯定
| Light Source | ||
|---|---|---|
| 650 nm visible laser diode (VLD) | ||
| Optical System | ||
| Laser | ||
| Microprocessor | ||
| 32-bit | ||
| Depth of Field | ||
| 5 mil: 50 – 110 mm 7.5 mil: 30 – 150 mm 10 mil: 30 – 180 mm 13 mil: 35 – 210 mm 20 mil: 20 – 280 mm Note: DOF may vary depending on environment condition and barcode quality. |
||
| Scan Angle | ||
| 52° | ||
| Pitch / Roll / Skew angle | ||
| 65° / 30° / 65° | ||
| Scan Rate | ||
| 500 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Three-color LED (green, red, blue) | ||
| Programmable Operation | ||
| Programmable tone & beep time | ||
| System Interface | ||
| Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 106.7 x 58.3 x 155.2 mm (device only) | ||
| Weight (g) | ||
| 130g (cable excluded) | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±10% | ||
| Power Consumption | ||
| 1.25 watts | ||
| Operating Current | ||
| 180 mA @ 5V ( Typical ) | ||
| Laser Class | ||
|---|---|---|
| CDRH Class IIa; IEC 60825-1: Class 2 | ||
| EMC | ||
| CE & FCC DOC compliant, VCCI, BSMI | ||
| Operating Temperature | ||
|---|---|---|
| 0 °C to +40 °C (32°F – 104°F) | ||
| Storage Temperature | ||
| -20°C to 60°C (32°F – 104°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| Max. 4,500 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
| 2D Barcode | ||
| PDF417 | ||
