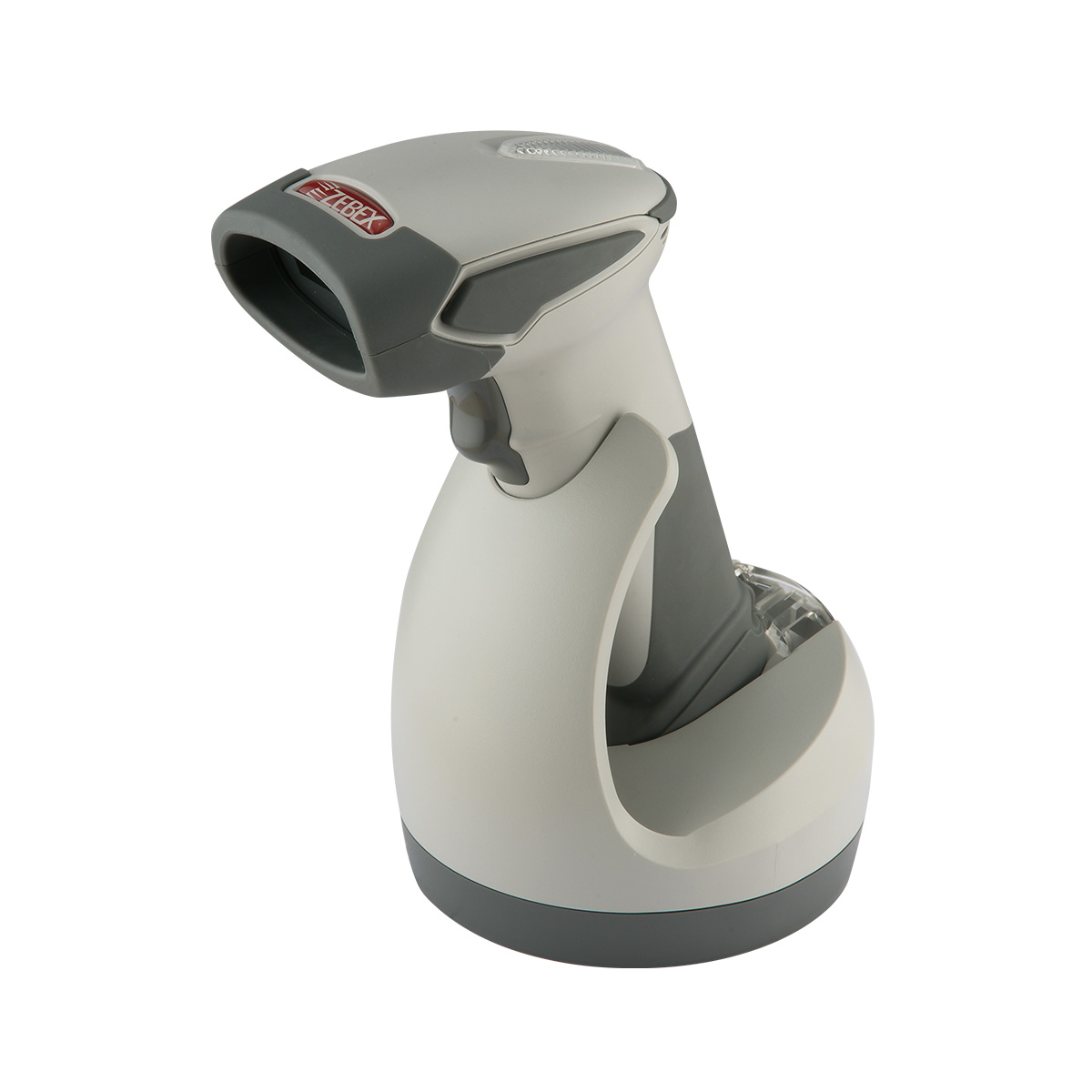

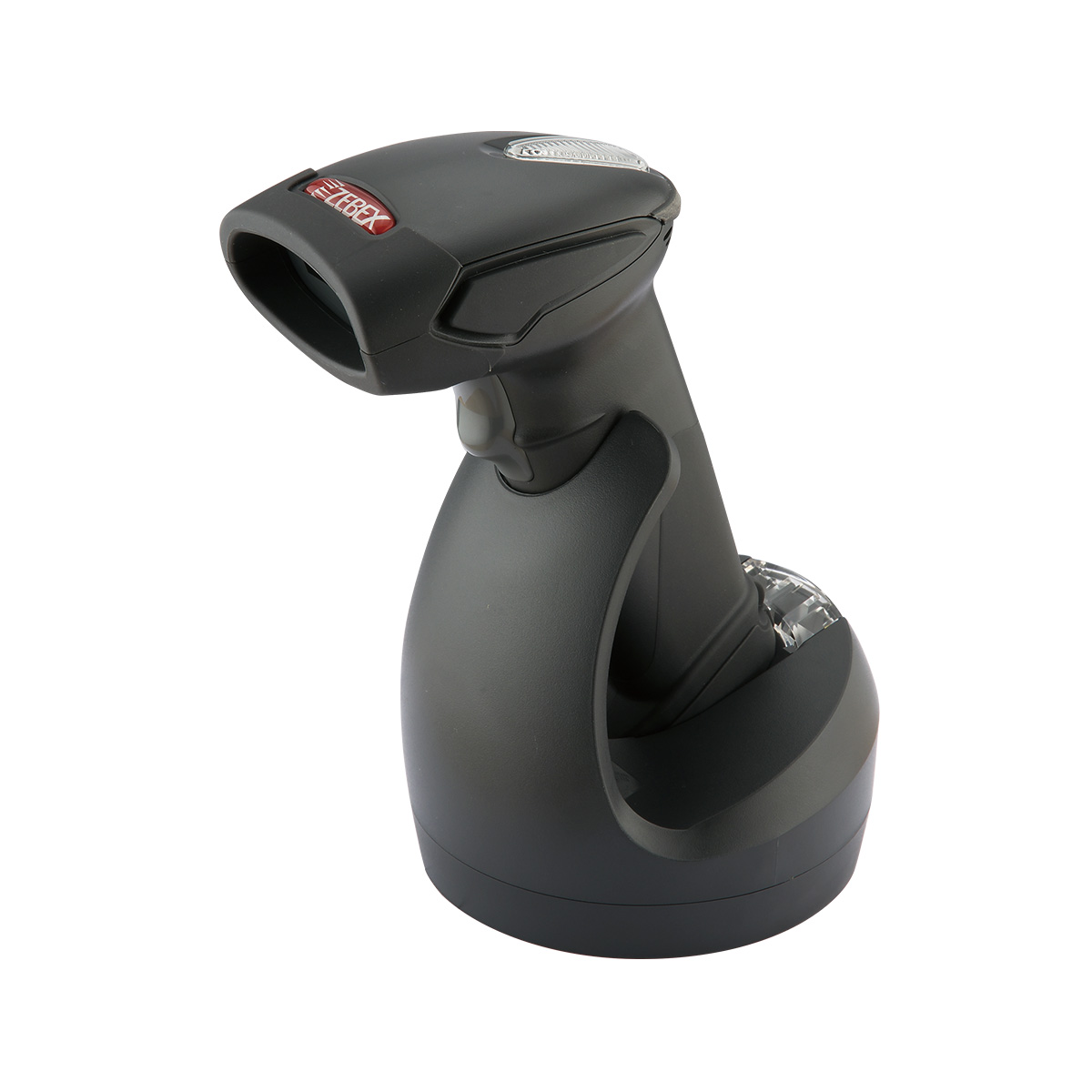

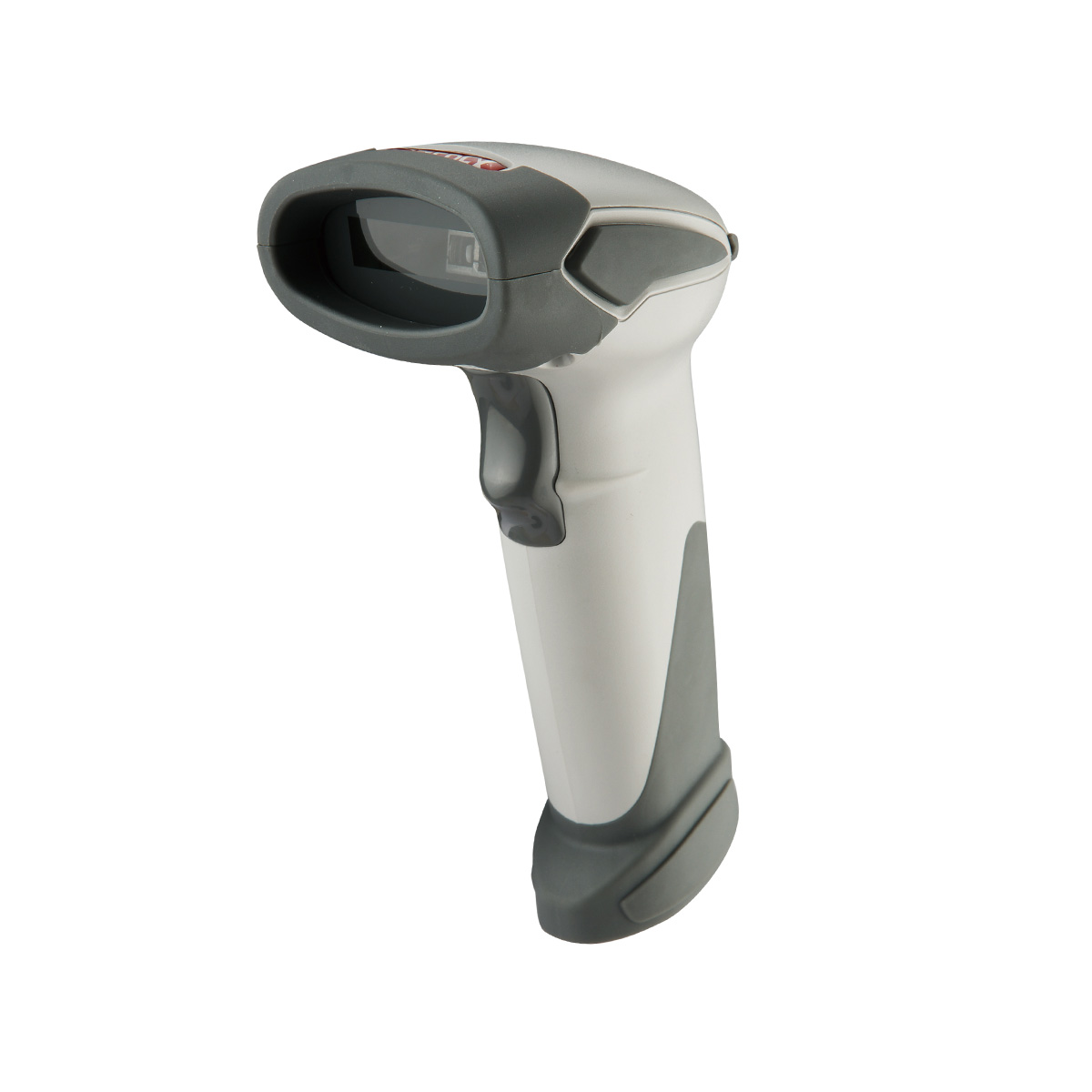

使用 Z-3190BT Plus 無線掃描器體驗最佳化、無縫且無憂的操作。告別雜亂的電線，其廣泛的無線連接範圍可達 100 米，提供無與倫比的高靈活度。 Z-3190BT Plus 與眾不同，整合了廣受好評的鋰離子電池可充電電池，確保在多次充電週期內保持持續效能。這款高度可靠的掃描器展示了 GS1 DataBar 解碼功能。它還採用堅固的槍式設計，非常適合惡劣的工作條件和惡劣的操作。此外，Z-3190BT Plus 能夠捕獲手機、平板電腦或電腦螢幕上的條碼，提供了無與倫比的多功能性。使用 Z-3190BT Plus 提升您的工作流程—效率和創新的體現，為跨行業尋求能力、耐用性和便利性的用戶提供終極解決方案。
• 專有的Ultrascan 解碼技術
• 32 位元微處理器單元
• GS1 DataBar 解碼功能
• 堅固的槍型設計
• 靈活的通訊選項
• 100M 工作範圍內的無線自由度
• 堅固的槍型設計，適合惡劣的工作條件和惡劣的操作
• 智慧充電，延長電池壽命
• 捕捉手機、平板電腦或電腦螢幕上的條碼
| Illumination Element | ||
|---|---|---|
| 617 nm visible red LED | ||
| Optical System | ||
| Linear CCD array | ||
| Image Sensor | ||
| 2500 pixels CCD | ||
| Microprocessor | ||
| 32-bit | ||
| Depth of Field | ||
| 4 mil: 40 – 100 mm 5 mil: 40 – 140 mm 7.5 mil: 20 – 200 mm 10 mil: 20 – 230 mm 13 mil: 30 – 330 mm 20 mil: 30 – 380 mm Note: DOF may vary depending on environment condition and barcode quality. |
||
| Scan Angle | ||
| 43° | ||
| Pitch / Roll / Skew angle | ||
| ±75° / ±25° / ±60° | ||
| Scan Rate | ||
| 330 scans per second | ||
| Print Contrast | ||
| Min. 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Beeper and LED | ||
| Programmable Operation | ||
| Beeper tone & volume | ||
| System Interface | ||
| RS-232, HID USB, USB Virtual COM | ||
| Dimensions H x W x L | ||
|---|---|---|
| 147.0 × 62.0 x 114.5 mm (device only)167.4 ×101.6 x 133.6 mm (with cradle) | ||
| Weight (g) | ||
| 199 g (with battery)500 g (with cradle) | ||
| Cable | ||
| Standard 3M straight | ||
| Frequency | ||
|---|---|---|
| 2.4~2.48 GHz (ISM band) | ||
| Interface | ||
| Cradle host; SPP master; HID; slave | ||
| Working Range | ||
| Up to 100M with communication cradle (depends on operating environment) | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| Charging: 500 mA (external power);Non-charging: 70 mA | ||
| Main Battery | ||

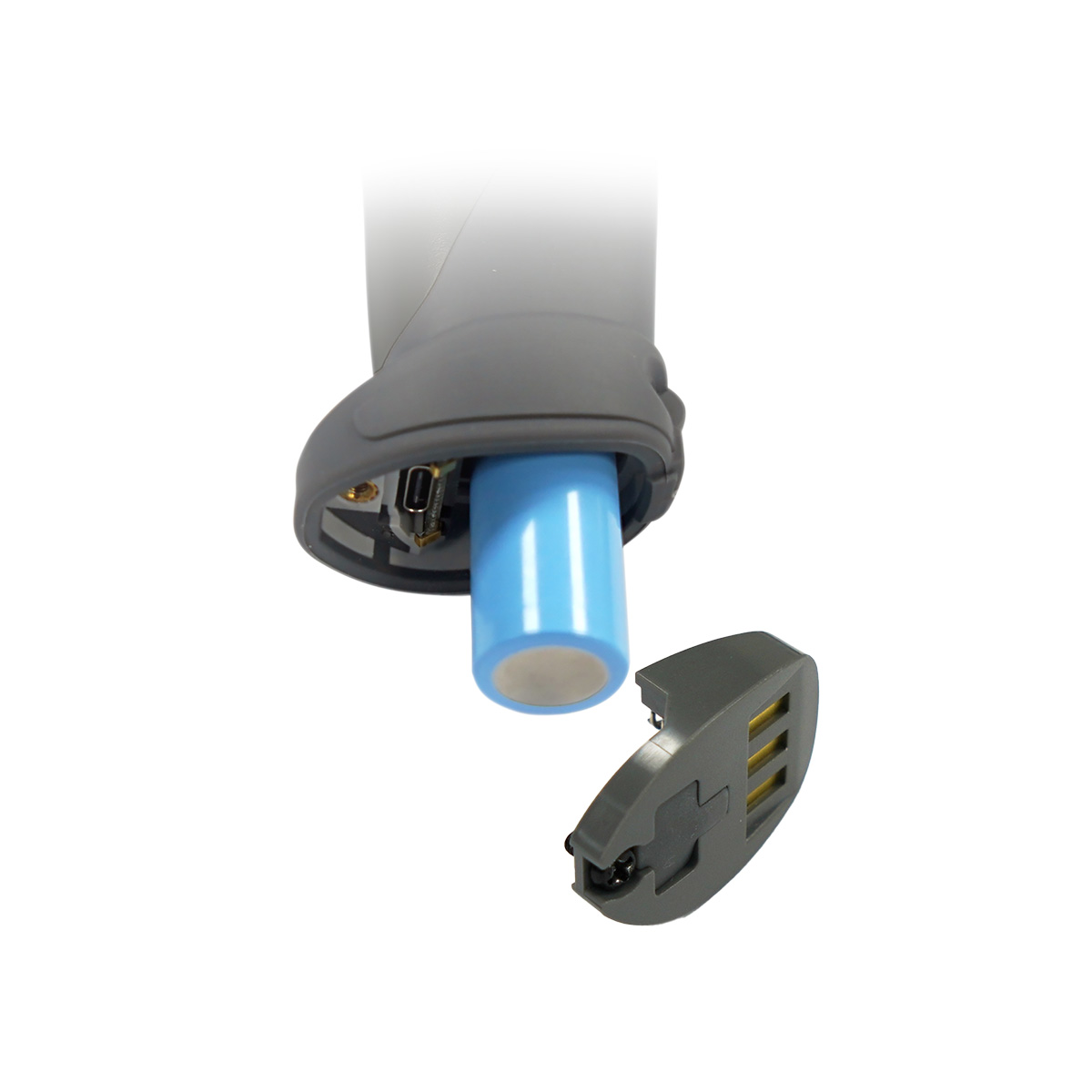

| 3.7V, 3,200 mAh, Li-ion battery | ||
| Recharging Time | ||
| Approximately 5 hours via cradle; 7 hours via USB cable | ||
| Number of Scan | ||
| Over 300, 000 scans at 6 scan per second per full charge | ||
| Battery Life | ||
| 40 hours per full charge | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant, VCCI, BSMI, UKCA | ||
| Radio | ||
| FCC Part 15C; CE EN 300 328; ARIB STD-T66 (Japan); NCC (Taiwan) | ||
| Safety | ||
| IEC 62471 | ||
| Operating Temperature | ||
|---|---|---|
| 0 °C to 50 °C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C to 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| 0-100,000 Lux (fluorescence) | ||
| Drop Durability | ||
| Designed to withstand 1.2M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
