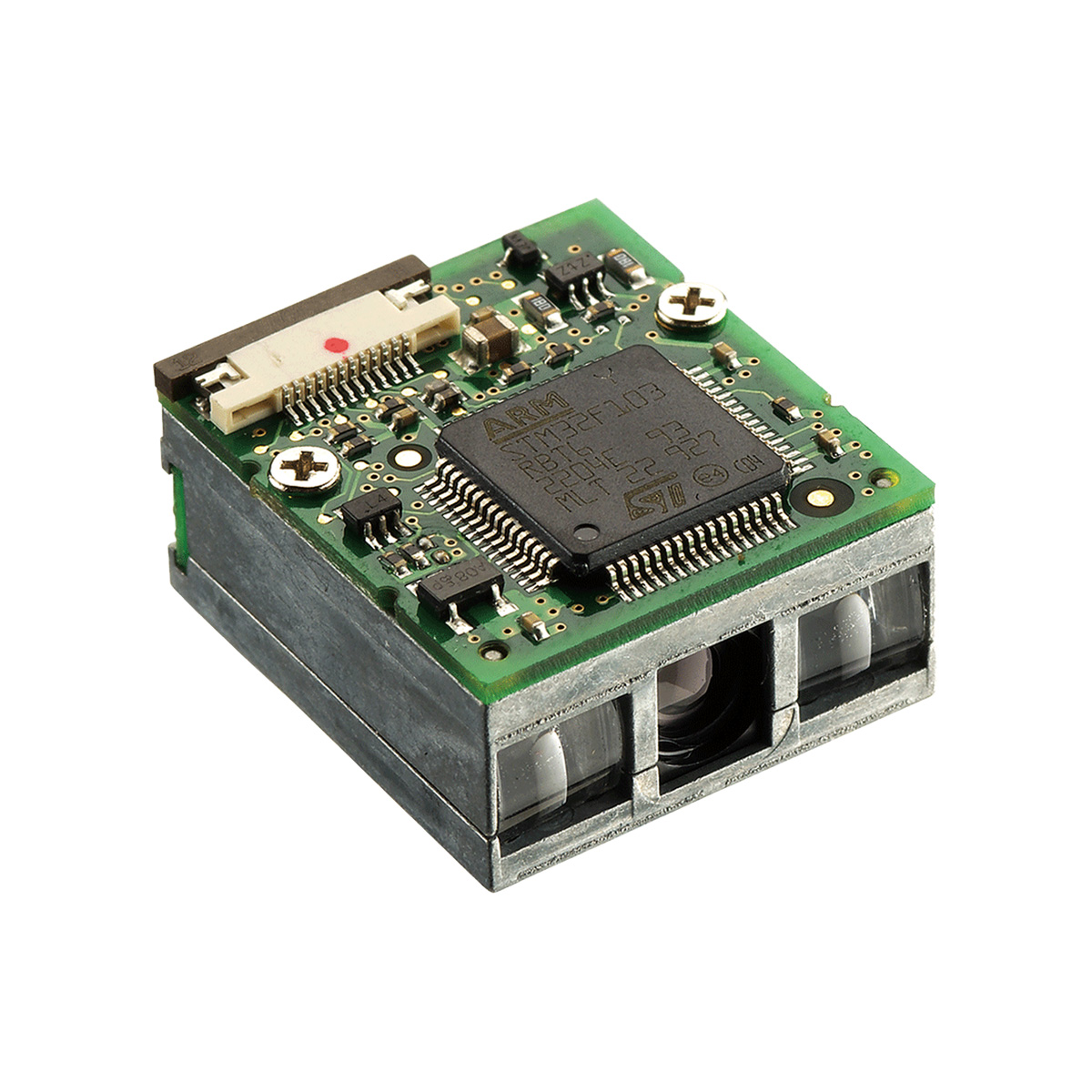

Z-5110 及 Z-5111 是ZEBEX第二代的迷你型一維條碼掃描引擎，不僅保留了原本極輕薄的外形，更將內建的微型處理器升級至32位元，確保嵌入式應用的靈活性與敏銳的掃描性能。Z-5110 及 Z-5111 系統介面支援標準陣列、USB介面及USB Virtual COM接口。在絕大多數的案例中，Z-5110 及 Z-5111 迷你型條碼掃描引擎均可輕而易舉的嵌入整合應用，不需要調整修改既有的硬體設備。具有解碼功能的 Z-5111 是現今世界上體積最小的機種之一，並且背面預設有兩個安裝孔，係專為輕鬆整合於各種資料收集裝置所設計的超級利器。
• 耐用、輕巧的工業等級外觀設計
• 每秒可掃描高達330次的強大掃描性能
• 可依需求選擇無解碼或可解碼之功能
• 支援0～100,000 Lux環境抗光度，可滿足各種應用需求，亦包括在陽光下使用
| Illumination Element | ||
|---|---|---|
| 617 nm visible LED; bright laser-imitated scanning line | ||
| Optical System | ||
| Linear CCD array | ||
| Microprocessor | ||
| 32-bit | ||
| Depth of Field | ||
| 4 mil: 60 – 120 mm 5 mil: 55 – 160 mm 7.5 mil: 50 – 210 mm 10 mil: 40 – 280 mm 13 mil: 50 – 330 mm 20 mil: 50 – 420 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 0.1 mm (0.07 mm actually) | ||
| Scan Rate | ||
| 330 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Programmable Operation | ||
| Programmable tone & beep time | ||
| System Interface | ||
| 12 lower contact ZIF connector | ||
| Connector | ||
| RS-232 (TTL level), HID USB, USB Virtual COM, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 11.8 x 20.5 x 22.8 mm | ||
| Weight (g) | ||
| 12 g | ||
| Power Consumption | ||
|---|---|---|
| 3.3 VDC ± 10% | ||
| Operating Current | ||
| 105 mA @ 3.3V ( Typical ) | ||
| Standby Current | ||
| 50 uA | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliance, VCCI, BSMI | ||
| Operating Temperature | ||
|---|---|---|
| 0°C – 50°C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C - 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Light Level | ||
| 0-100,000 Lux (any lighting condition) | ||
| Shock | ||
| 2,000 G | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
