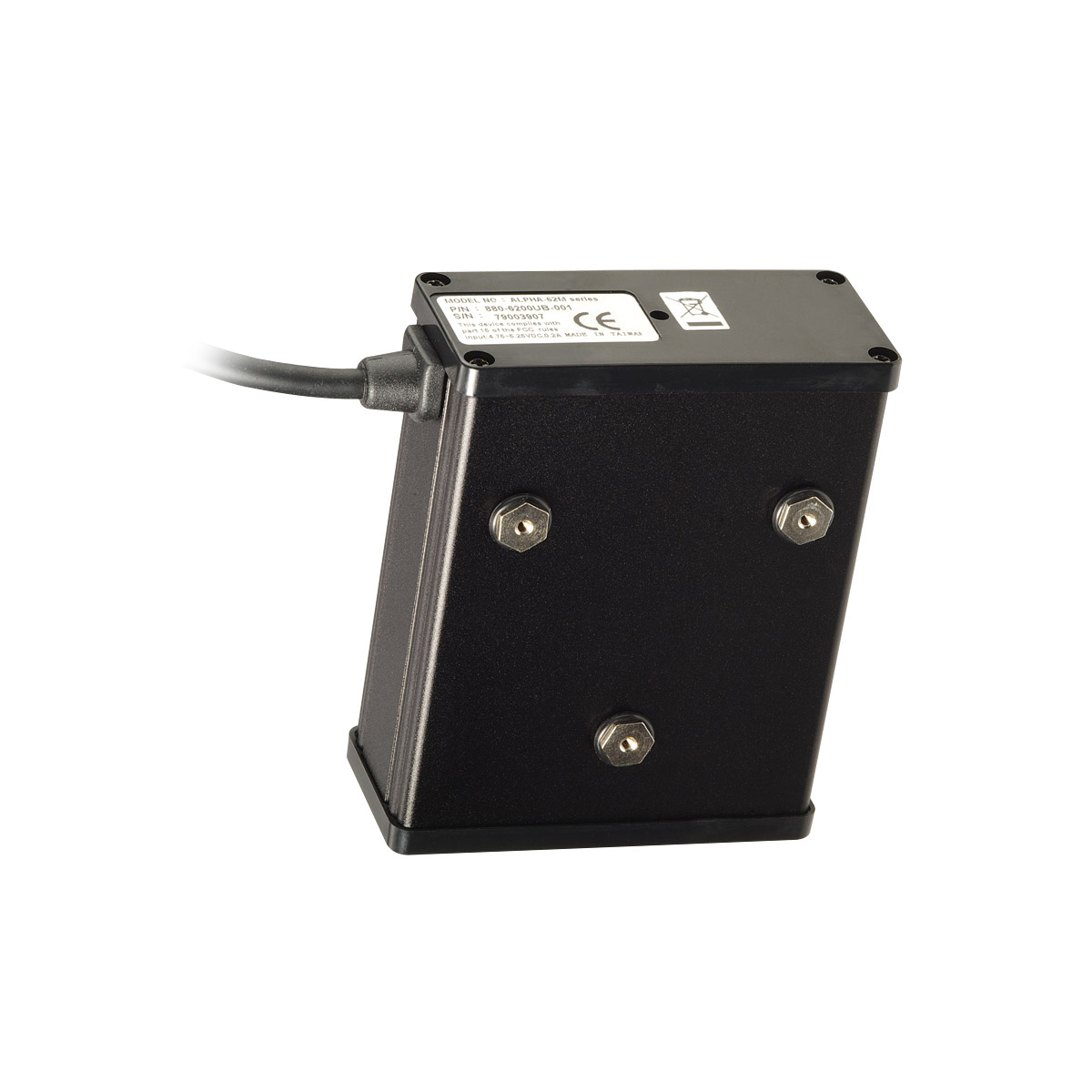

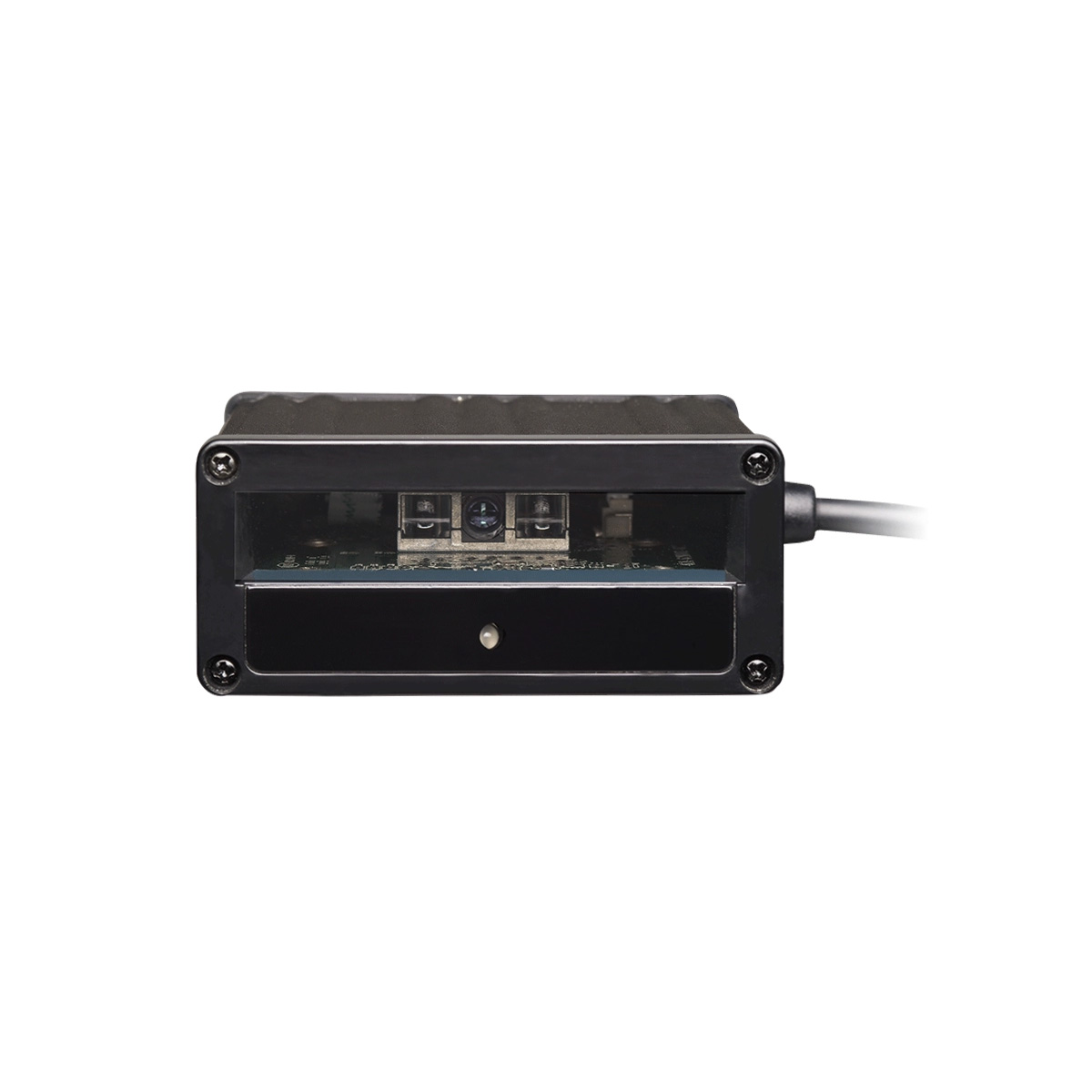

Z-5160中距離掃描模組具有高度的客製訂做彈性，並且操作極為簡單。這支中距離CCD掃描模組係專門為嵌入式的掃描應用所打造的，易於與其他設備整合，並具備卓越的掃描效能。強大的CCD線性光學系統，以每秒掃描高達330次的驚人速度，可解譯最低解析度4 mil的條碼。Z-5160內建ZEBEX特殊設計的CCD掃描引擎，可打出近似雷射光束般明亮而清晰的掃描光線，提供使用者絕佳的視覺指引，而其高解析CCD更具備卓越的掃描性能。
• 獨家Ultrascan解碼科技
• 輕巧的工業級外殼設計，易於與任何大型機台結合應用
• 支援多種傳輸介面可彈性運用
• 類比影像擷取技術
| Illumination Element | ||
|---|---|---|
| 617 nm visible LED | ||
| Optical System | ||
| Linear CCD array | ||
| Microprocessor | ||
| 32 bit | ||
| Depth of Field | ||
| 4 mil: 20 – 80 mm 5 mil: 15 – 115 mm 7.5 mil: 10 – 160 mm 10 mil: 10 – 220 mm 13 mil: 5 – 280 mm 20 mil: 20 – 360 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 0.1 mm (0.07 mm actually); (Code 39, PCS=90%) | ||
| Scan Rate | ||
| 330 scans per second | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED (green & red) | ||
| Programmable Operation | ||
| Programmable tone & beep time | ||
| Connector | ||
| Keyboard, RS-232, HID USB, USB Virtual COM, OPOS, JPOS | ||
| Dimensions H x W x L | ||
|---|---|---|
| 30.3 x 65.0 x 80.0 mm | ||
| Weight (g) | ||
| 121.5 g (device only) | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 100 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant, VCCI, BSMI | ||
| Operating Temperature | ||
|---|---|---|
| 0°C – 50°C (32°F – 122°F) | ||
| Storage Temperature | ||
| -20°C - 60°C (-4°F – 140°F) | ||
| Humidity | ||
| 20%~95% RH (non condensing) | ||
| Light Level | ||
| 0 – 100,000 Lux | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen | ||
A-62M G2 的預設通訊協定為 9600, N, 8, 1。請將 HyperTerminal 設定為相同的通訊協定。
主機板 J2 的 PIN 腳位定義如下：
PIN1 Vin
PIN2 RTS
PIN3 CTS
PIN4 TXD
PIN5 RXD
PIN9 Trigger
