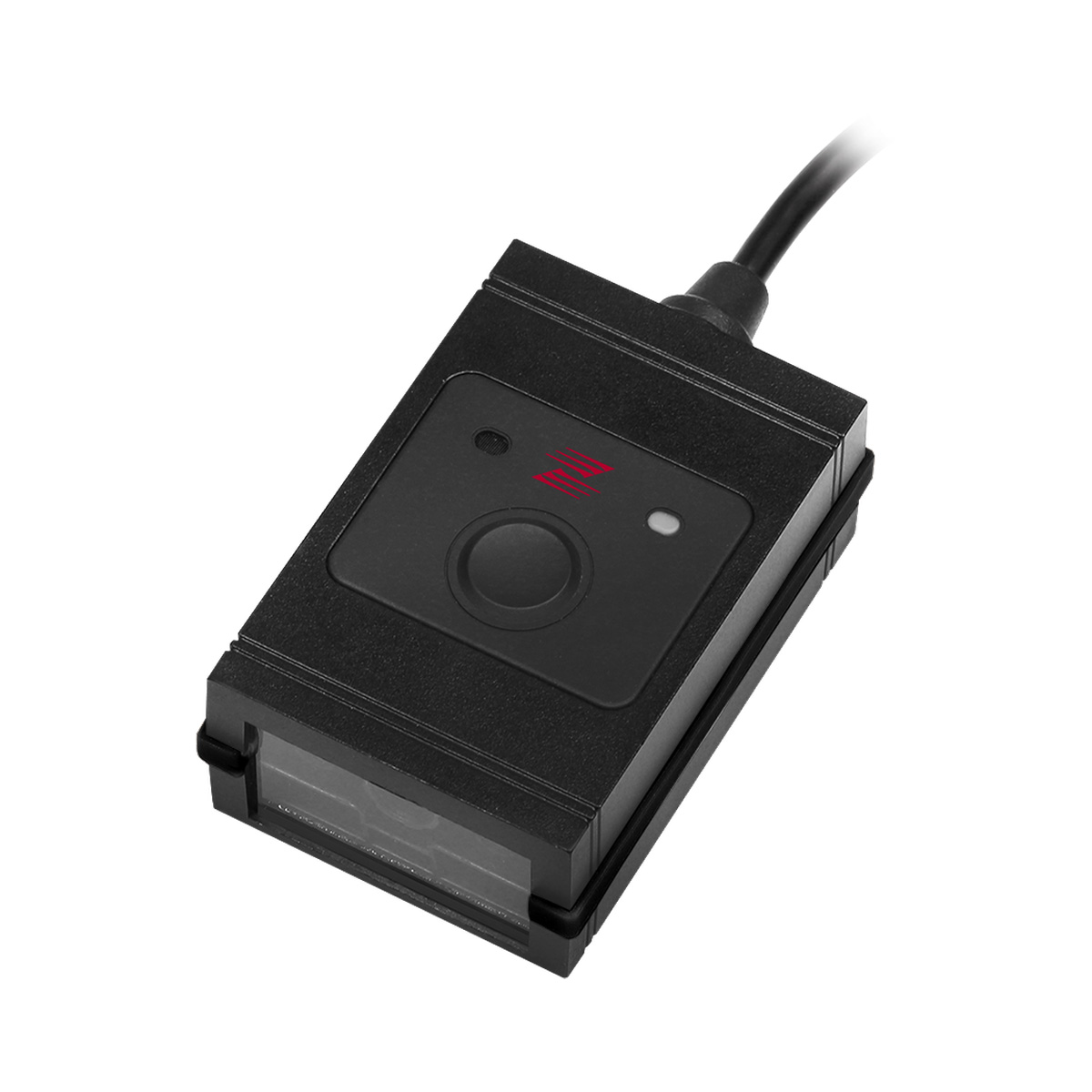

該掃描器具有強大的 2D 引擎，可輕鬆讀取大多數 1D 和 2D 條碼，並具有高度精準度，同時不影響性能的照明速度。它還擅長讀取智能手機屏幕上的條碼和印刷質量不佳的條碼。它是醫療行業、零售店、智能手機應用程序和銀行業的完美解決方案。
• 優異的動態掃描容忍度和全方位的條碼讀取
• 支援一維和二維全方位快速掃描
• 可讀取智慧型手機、平板、個人電腦等設備螢幕上之條碼

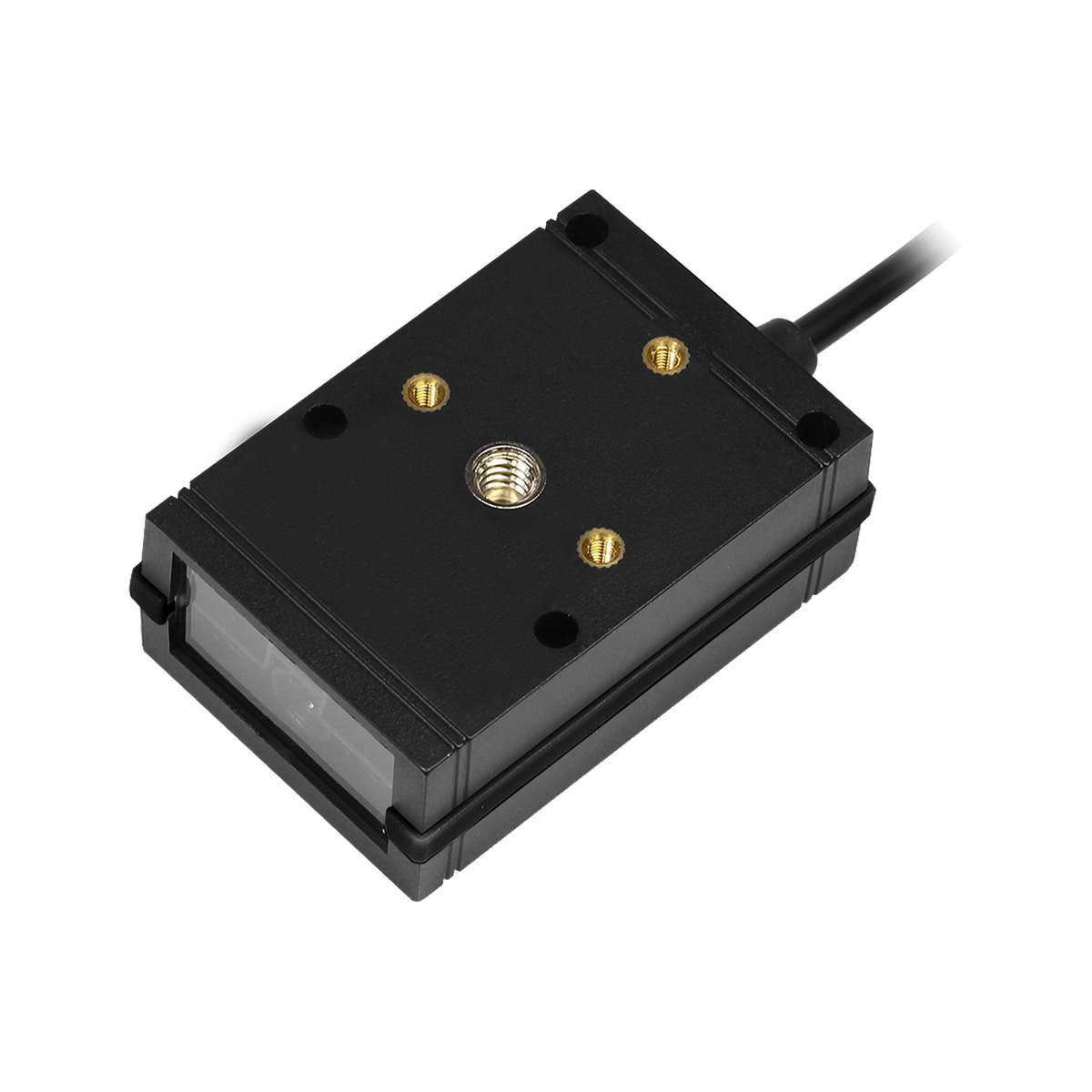

• 高度靈活的設計，易於安裝
| Aiming Element | ||
|---|---|---|
| 617 nm LED | ||
| Illumination Element | ||
| 617 nm LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 (5 mil) : 65 - 115 mm EAN 13 (13 mil) : 40 - 250 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 4 mils (Code39) | ||
| Scan Angle | ||
| 44.4° horizontal; 29.1° vertical | ||
| Sensitivity | ||
| 360° (omnidirectional rotational sensitivity) | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED (blue, red) | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||

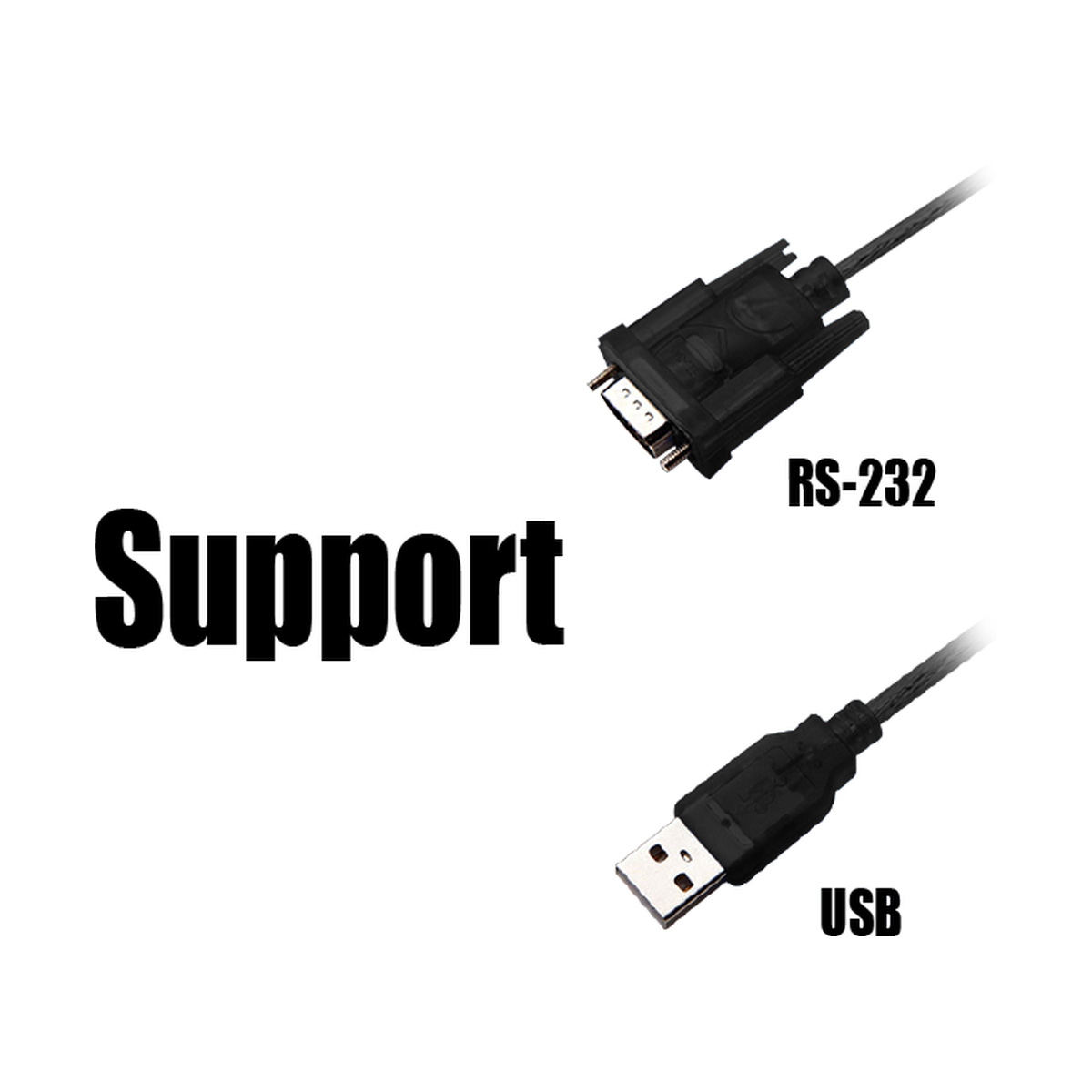

| System Interface | ||
| RS-232, USB | ||
| Dimensions H x W x L | ||
|---|---|---|
| 24.3 × 42.6 × 63.3 mm (device only) | ||
| Weight (g) | ||
| 110 g | ||
| Cable | ||
| Standard 2M straight | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±5% | ||
| Operating Current | ||
| 230 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE & FCC DOC compliant; VCCI; BSMI | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| -20° C ~ 50° C | ||
| Storage Temperature | ||
| -20°C - 60°C | ||
| Humidity | ||
| 5%~95% RH (non condensing) | ||
| Light Level | ||
| Max. 100,000 Lux | ||
| Drop Durability | ||
| Designed to withstand 1.5M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C), Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code(Standard, Inverse, Micro) | ||
