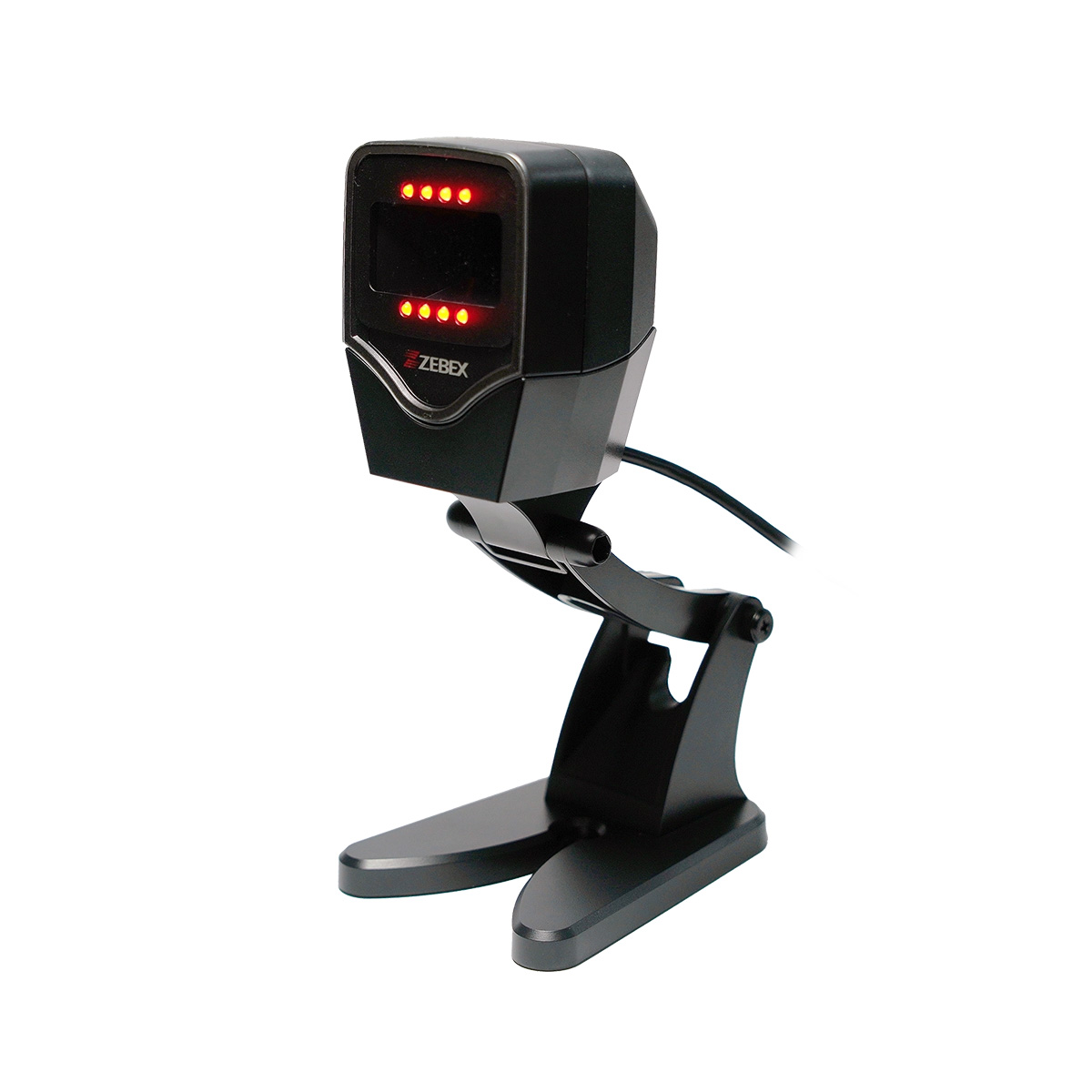

您是否正在尋找一款小巧且多功能的條碼掃描器以提高工作效率？ Z-6012 GT 正是您的最佳選擇！ Z-6012 GT可以不僅是桌上型掃描器，更可以安裝於資訊亭中，為您的整合應用提供靈活性。具有通用的1/4吋的相機腳架螺絲孔，安裝Z-6012GT變得輕而易舉。工業級規格的IPX5/IP54防水防塵設計，更保證了惡劣環境下的耐用性。Z-6012 GT 掃描器並且可切換成手機模式，能快速讀取手機螢幕上的一維及二維條碼；全平面掃描窗口，易於清潔。搭載高智能化調光技術，工作電流比其他同等級廠牌更低更節能。 Z-6012 GT由臺灣研發團隊精心打造，是您可以信賴的工作夥伴。
• 小巧簡約外觀設計
• 手機模式，針對低亮度高反光的螢幕，依然可以輕鬆解碼
• IP54/IP54防水防塵，並通過嚴格高低溫及落下測試
• 高智能化調光技術
• 全平面視窗，清潔無死角

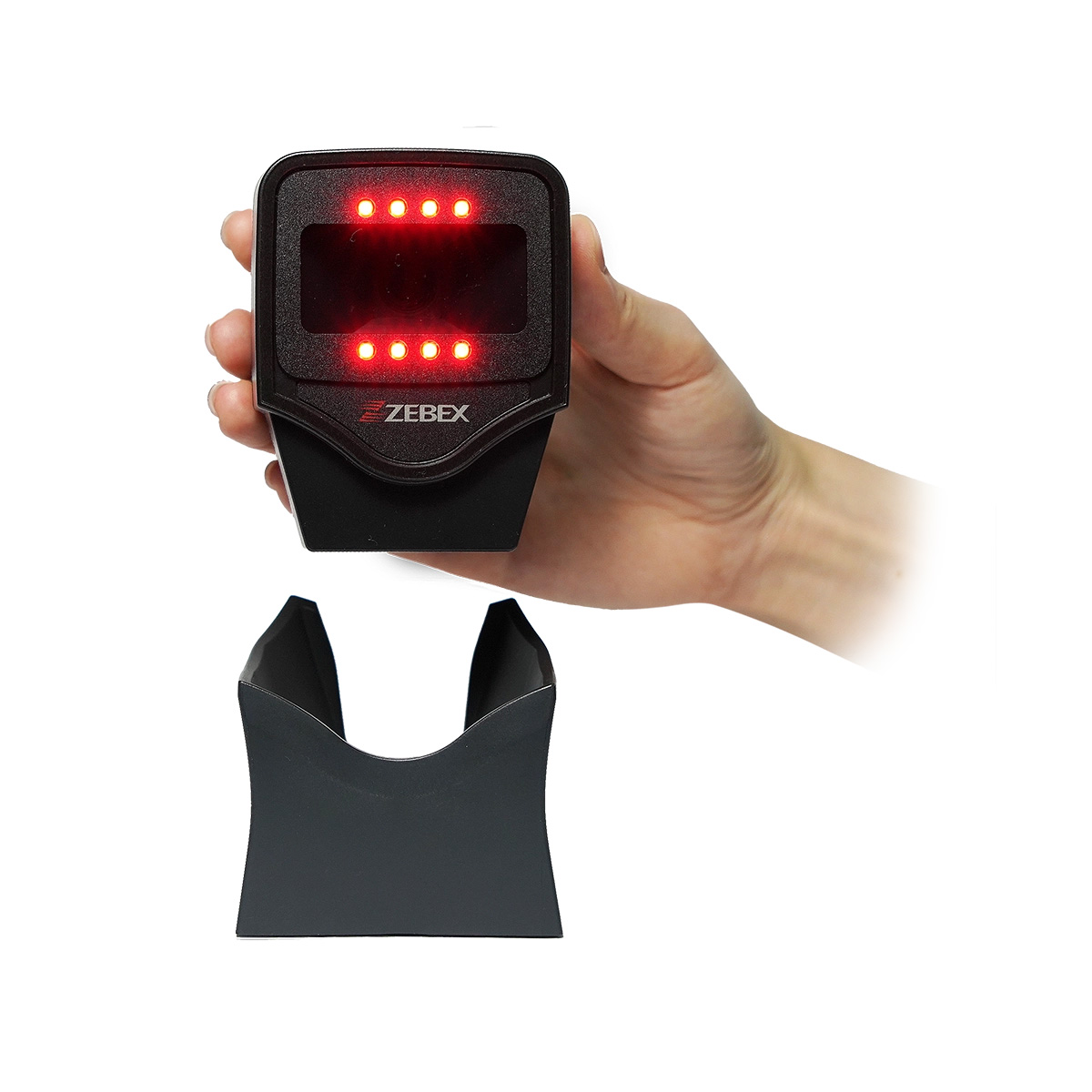

• 實用且靈活的螺絲孔位及底座
| Illumination Element | ||
|---|---|---|
| 617 nm LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 ( 4 mil ) : 50 – 80 mmCode39 ( 5 mil ) : 50 – 120 mmEAN 13 ( 13 mil ) : 10 – 200 mm(Note : DOF may vary depending on environment condition andbarcode quality) | ||
| Min. Bar Width | ||
| 4 mil ( Code 39 ) | ||
| Scan Angle | ||
| 56.0° horizontal; 37.0° vertical | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Two-color LED ( Blue & Red ) | ||
| Programmable Operation | ||
| Scan mode, Beeper tone | ||
| System Interface | ||
| RS-232, USB, USB Type-C | ||
| Dimensions H x W x L | ||
|---|---|---|
| 110.9 x 70.0 x 65.8 mm ( On fixed stand ) | ||
| Weight (g) | ||
| 225 g ( With stand ) | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ±10% | ||
| Operating Current | ||
| 200 mA typical | ||
| EMC | ||
|---|---|---|
| CE & FCC, VCCI, BSMI, UKCA | ||
| Safety | ||
| IEC 62471 | ||
| Operating Temperature | ||
|---|---|---|
| -10°C ~ 50°C ( 14°F ~ 122°F ) | ||
| Storage Temperature | ||
| -40°C ~ 70°C ( -40°F ~ 158°F ) | ||
| Humidity | ||
| 5% ~ 95% RH (non-condensing) | ||
| Light Level | ||
| Max. 100,000 Lux (Typical 80,000 Lux) | ||
| Drop Durability | ||
| Designed to withstand 1M drops | ||
| Environmental Sealing | ||
| IPX5 / IP54 | ||
| Shock/Vibration | ||
| 4.45 grms, 20-2000Hz, 3 axes | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN (UPC-A / UPC-E, EAN-8 & EAN-13, ISBN(Bookland), ISSN), Code 39 (Standard,Full ASCII,Trioptic, Code 32 (italian Pharmacode), Code 128, Code93, Codabar, 2 of 5 (interleaved 2 of 5, Discrete 2 of 5,IATA, Matric 2 of 5, Code 11), MSI Plessey, GS1DataBard (Omnidirectional, Truncated, Stacked, StackedOmnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Composite Codes (CC-A, CC-B,CC-C), Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard,Inverse, Micro) | ||
