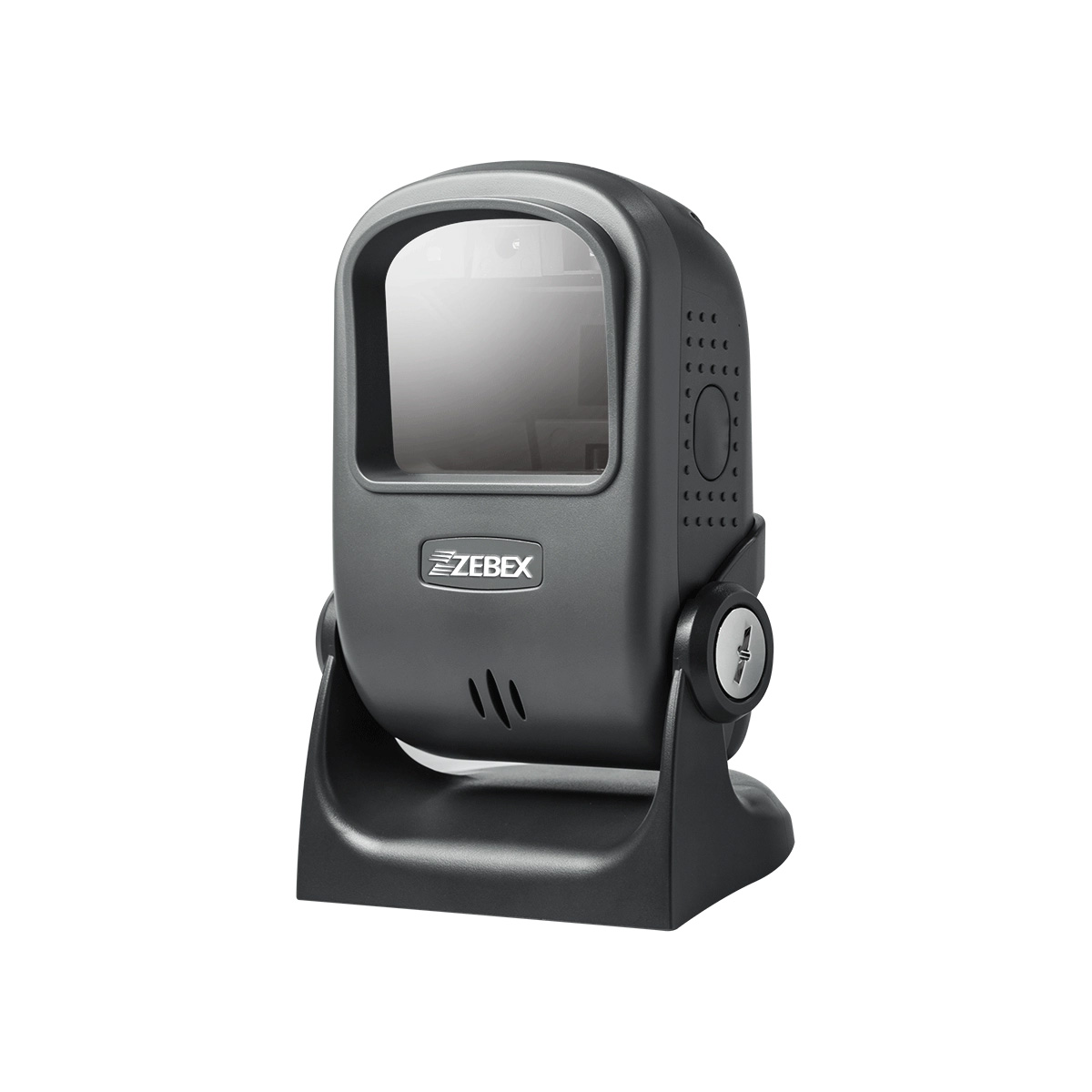

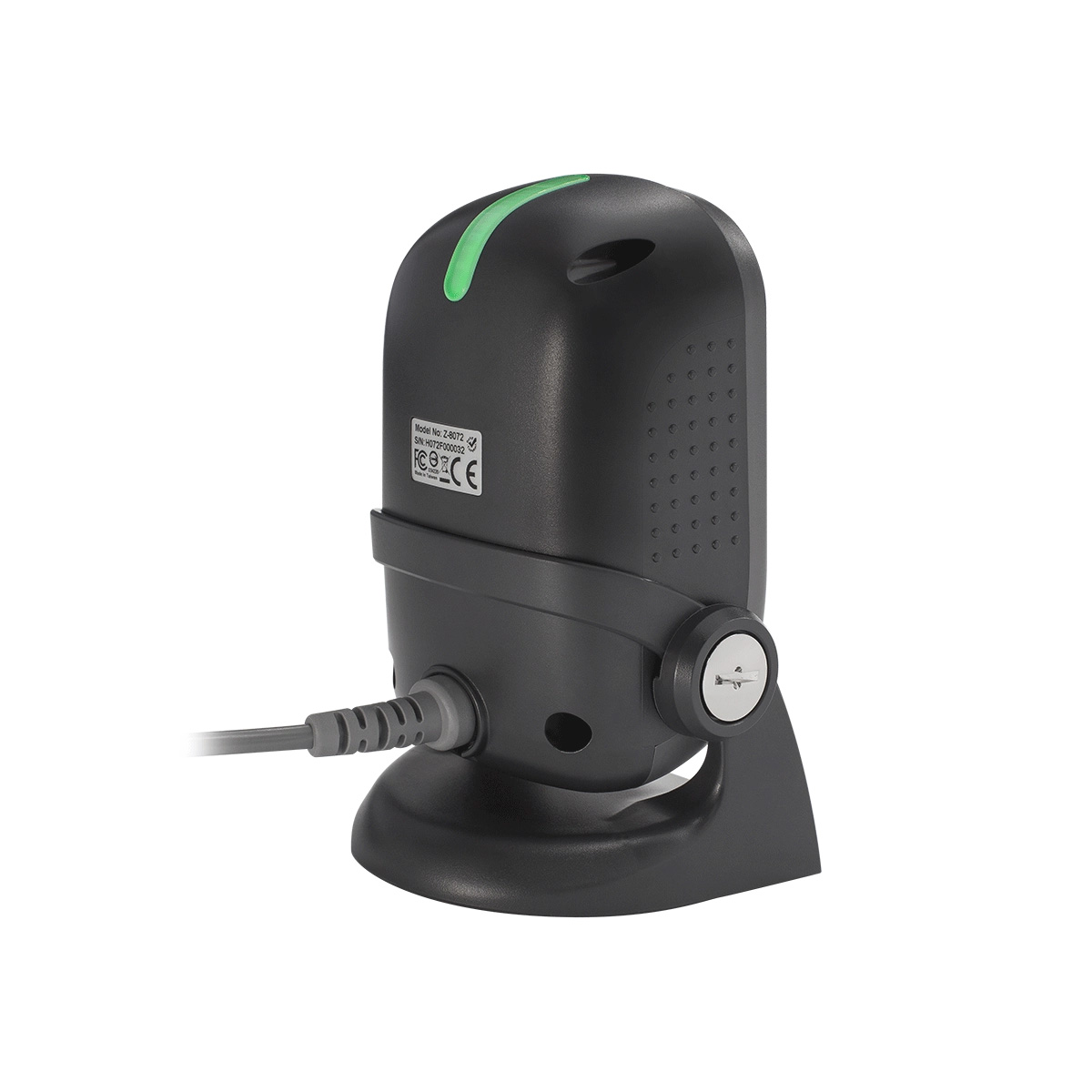

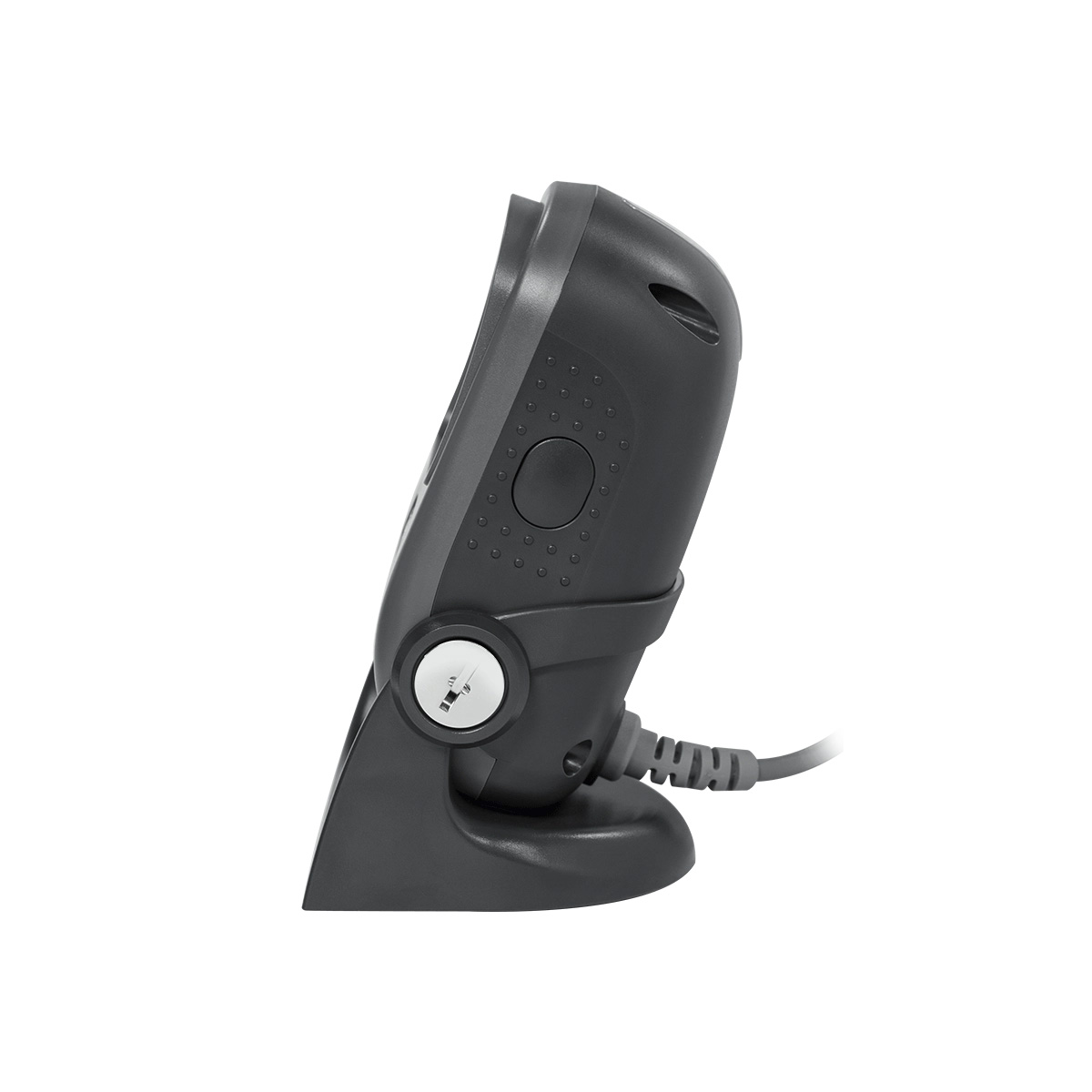

Z-8072 Ultra 2D 圖像免持條碼掃描器提供強大的功能和增強的性能。強大的 2D 掃描器和緊湊的尺寸使用戶即使在空間有限的情況下也能直觀、準確地瞄準。此外，它旨在讀取智能手機屏幕上的條形碼，即使它們處於低背光設置。它是任何空間受限環境的完美解決方案。
• 增強功能可在智能手機屏幕上以低亮度快速掃描條碼
• 增強對反射表面的掃描
• 增強的掃描靈敏度、範圍和速度
• 增強了特殊環境下的可讀性
• 便於使用;不同的應用程序不需要更改設置
• 醫療保健標籤合規性：支持 GS1 和 FMD 格式
| Aiming Element | ||
|---|---|---|
| 617 nm LED | ||
| Illumination Element | ||
| 617 nm LED | ||
| Optical System | ||
| CMOS | ||
| Image Sensor | ||
| 1280 x 800 | ||
| Depth of Field | ||
| Code39 (3 mil): 0 – 30 mm Code39 (5 mil): 0 – 50 mm EAN13 (13 mil): 0 – 210 mm Note: DOF may vary depending on environment condition and barcode quality. | ||
| Min. Bar Width | ||
| 6.8 mil (PDF 417), 3 mil (Code 39) | ||
| Scan Angle | ||
| 44.4° horizontal; 29.1° vertical | ||
| Print Contrast | ||
| 30% @ UPC/EAN 100% | ||
| Indicator | ||
| Color LED | ||
| Programmable Operation | ||
| Scan Mode, Beeper tone | ||

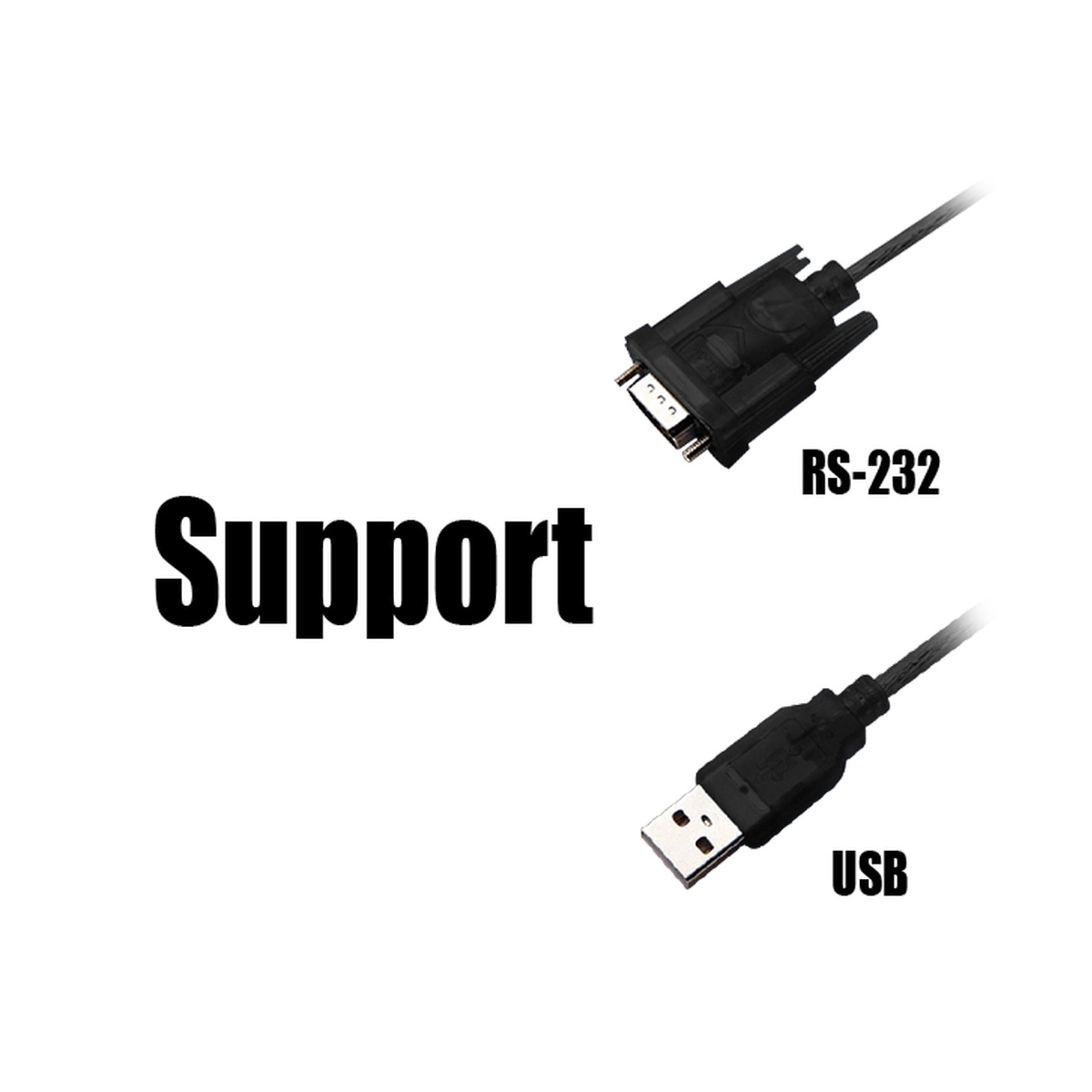

| System Interface | ||
| RS-232, USB | ||
| Dimensions H x W x L | ||
|---|---|---|
| 145 x 80.2 x 97.0 mm | ||
| Weight (g) | ||
| 250 g | ||
| Input Voltage | ||
|---|---|---|
| 5 VDC ± 10% | ||
| Operating Current | ||
| 220 mA @ 5V ( Typical ) | ||
| EMC | ||
|---|---|---|
| CE, FCC, VCCI, BSMI | ||
| Safety | ||
| IEC 62471 Exempt | ||
| Operating Temperature | ||
|---|---|---|
| 0° C ~ 50° C (32°F – 122°F) | ||
| Storage Temperature | ||
| -40°C - 70°C (-40°F – 158°F) | ||
| Humidity | ||
| 5% – 95% RH (non-condensing) | ||
| Drop Durability | ||
| Designed to withstand 1M drops | ||
| 1D Barcode | ||
|---|---|---|
| UPC/EAN [UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN], Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Matrix 2 of 5, Code11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) | ||
| 2D Barcode | ||
| PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C) , Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro) | ||
