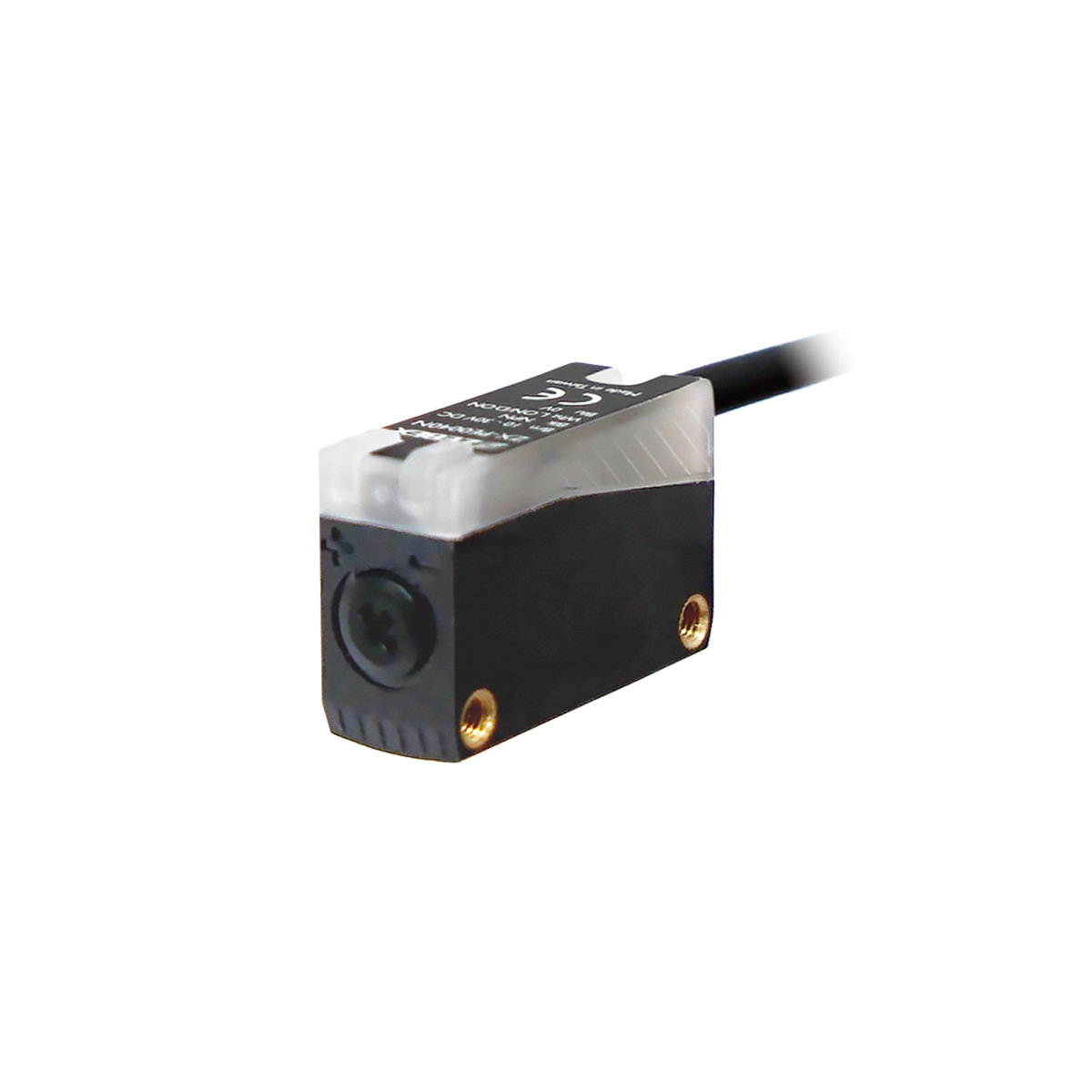

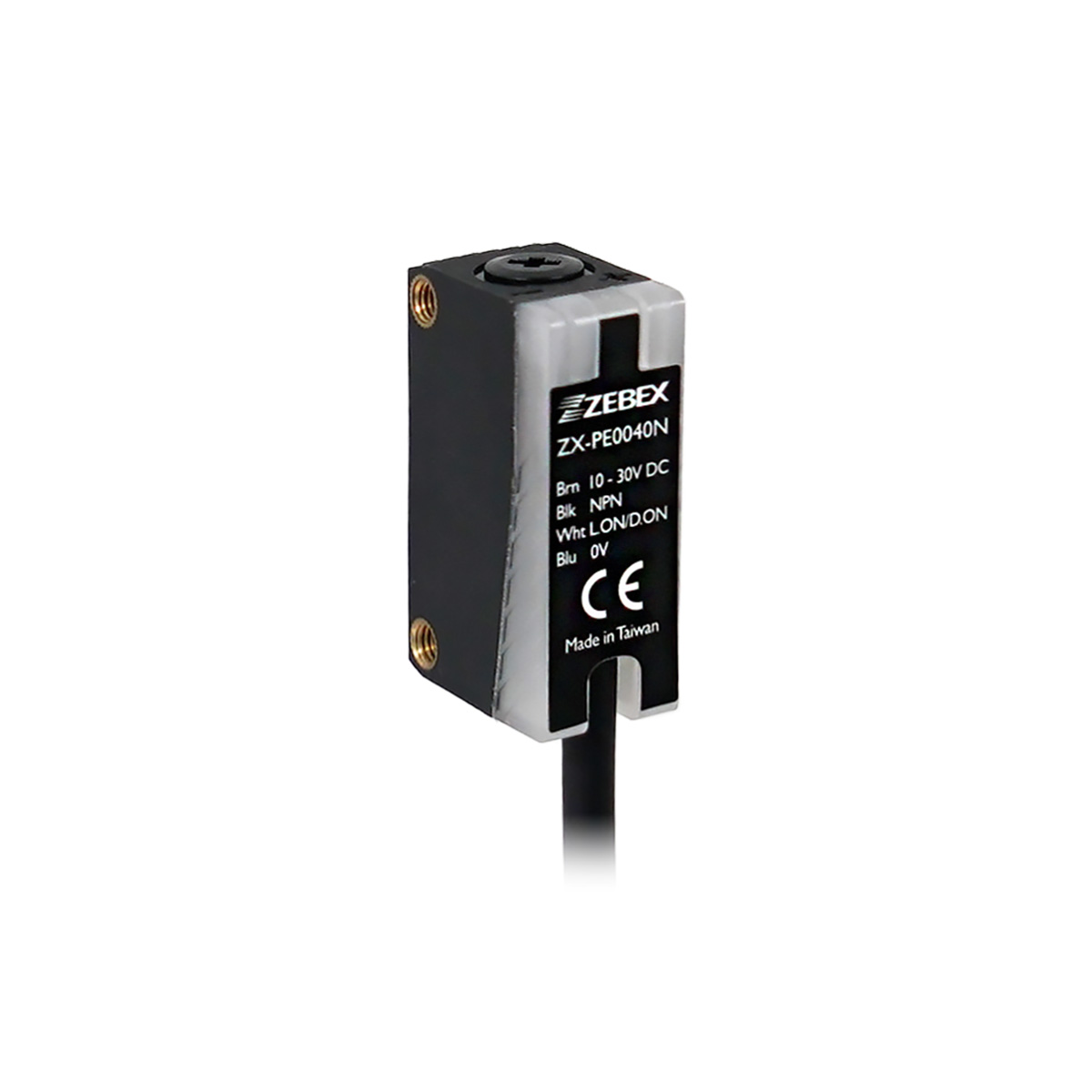

在高性能製造領域，每一毫秒、每一微米都至關重要，而 ZX-PE0040光電雷射感測器正是為了確保生產始終保持最佳精度而設計的。其新一代雷射引擎可提供超聚焦、高清晰度的偵測，即使在惡劣或不穩定的光照條件下，也能以計量級的精度鎖定微小、低對比度或高速運轉的組件。透過將快速訊號處理與卓越的穩定性相結合，該感測器可消除誤觸發，加強製程控制，提高良率，並從安裝之日起防止代價高昂的生產停機。對於致力於建造更快、更智慧、更有效率生產線的製造商而言，ZX-PE0040不僅僅是一個感測器，它更是性能倍增器，可將精度轉化為真正的競爭優勢。
主要特性：
- 背景抑制，檢測穩定
- 強抗強光影響
- 聚焦雷射光斑，實現高精度檢測
- 快速反應，滿足高速生產線需求
- 更少的誤觸發，運行更流暢
| Weight | ||
|---|---|---|
| about 68g | ||
| Material | ||
| PBT+ glass fiber ( housing ); PMMA ( lens ) | ||
| Dimensions | ||
| 11.1 x 31.7 x 20.8 mm | ||
| Connection Method | ||
| 2 m / 4-core cable | ||
| Maximum Tightening Torque | ||
| ≤ 0.5Nm | ||
| Storage Humidity | ||
|---|---|---|
| 35% ~ 95% RH ( non-condensation ) | ||
| Storage Temperature | ||
| -30°C ~ 70°C ( no freezing ) | ||
| Protection Rating | ||
| IP65 | ||
| Vibration Resistance | ||
| 10 ~ 55 Hz, amplitude 1.5 mm, 2 hours each in X/Y/Z axes | ||
| Ambient Light | ||
| Incandescent light ? 1000 Lux; LED light ? 600 Lux; Sunlight ? 20000 Lux | ||
| Operating Humidity | ||
| 35% ~ 85% RH ( non-condensation ) | ||
| Operating Temperature | ||
| -10 ~ 50°C ( no freezing ) | ||
| Residual Voltage | ||
|---|---|---|
| < 1.5 V | ||
| Hysteresis | ||
| ≤ 5% | ||
| Protection circuit | ||
| Reverse polarity protection / Short-circuit protection | ||
| Withstand Voltage | ||
| 1000 VAC ( 50 / 60Hz ) | ||
| Insulation Resistance | ||
| ≥ 20 MΩ ( 250V DC ) | ||
| Load Current | ||
| 100 mA | ||
| Current Consumption | ||
| ≤ 20 mA | ||
| Operating Voltage | ||
| 10 – 30VDC ± 10% | ||
| Response Time | ||
| ≤ 1.2 ms | ||
| Output mode | ||
| NPN or PNP collector open | ||
| Switching Mode | ||
| L.on ( light-on action ) / D.on ( dark-on action ) switchable | ||
| Sensitivity Adjustment | ||
|---|---|---|
| 6-turn potentionmeter | ||
| Indicator LIght | ||
| Operating indicator light : green/Output indicator light : red | ||
| Detected Object | ||
| ø 0.5 mm | ||
| Spot Size | ||
| about ø1.5 mm / 400 mm | ||
| Light Source | ||
| Red laser, 650 nm ( modulated ) | ||
| Detection Range | ||
| 20 – 400 mm | ||

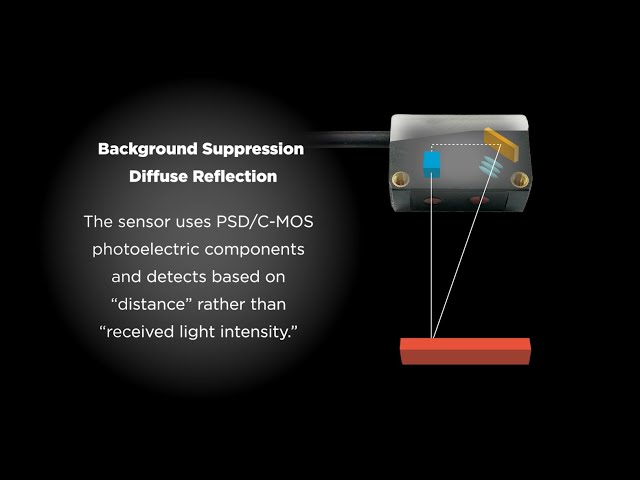

| Optical Working Principle | ||
| Background suppression diffuse reflection | ||
| Housing Style | ||
| Square | ||
| Working Pinciple | ||
| Photoelectric Sensor | ||
