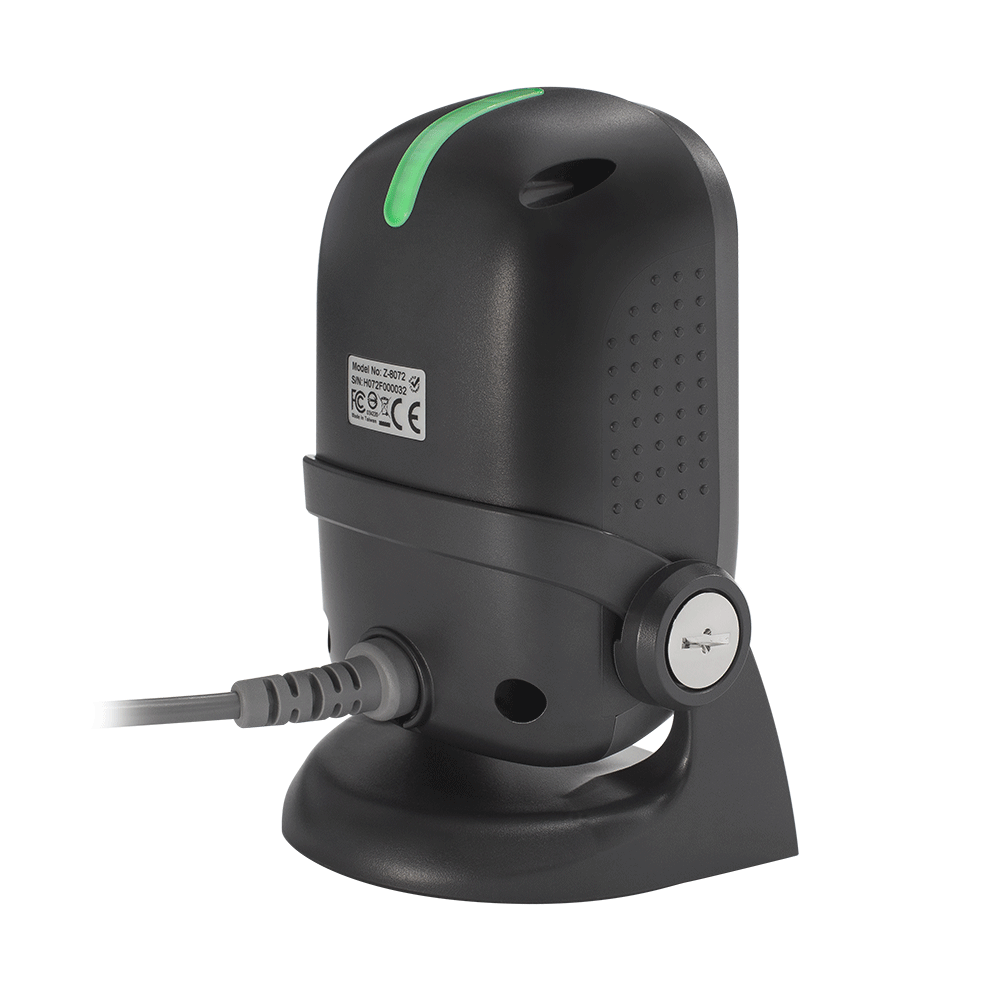

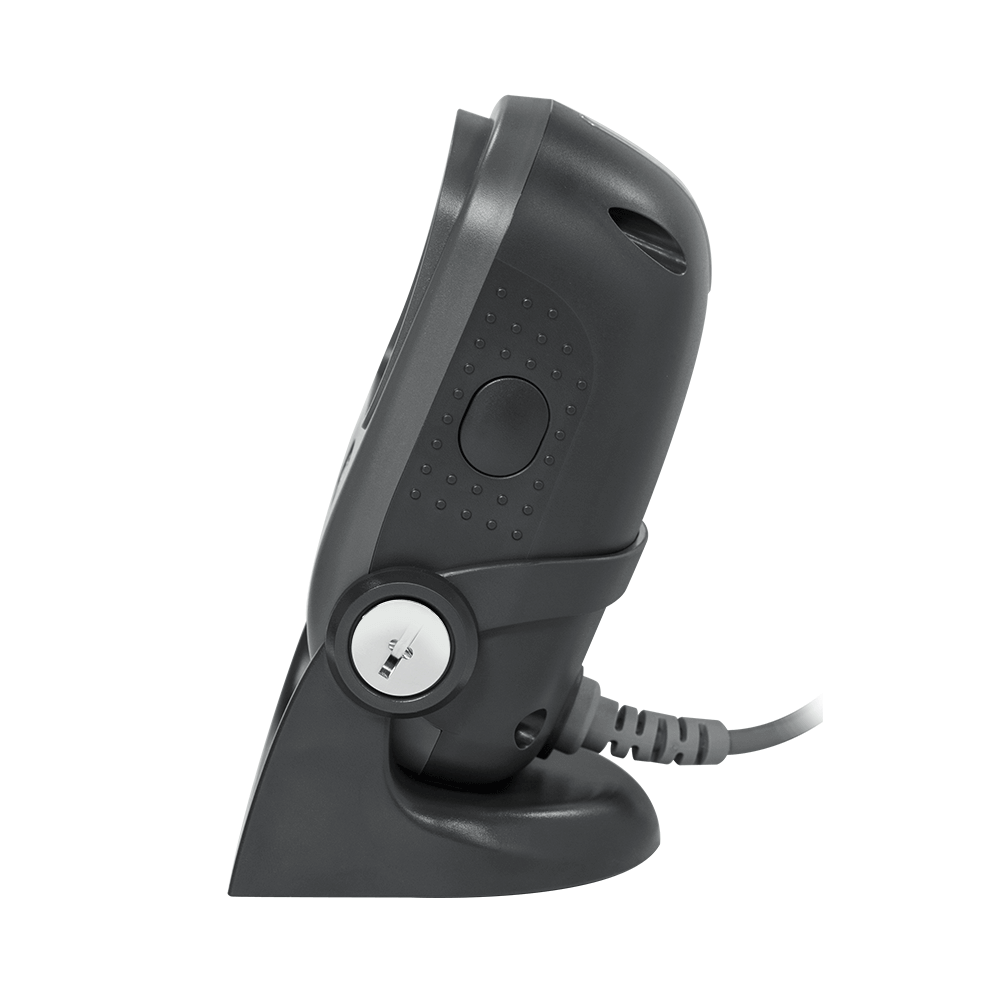

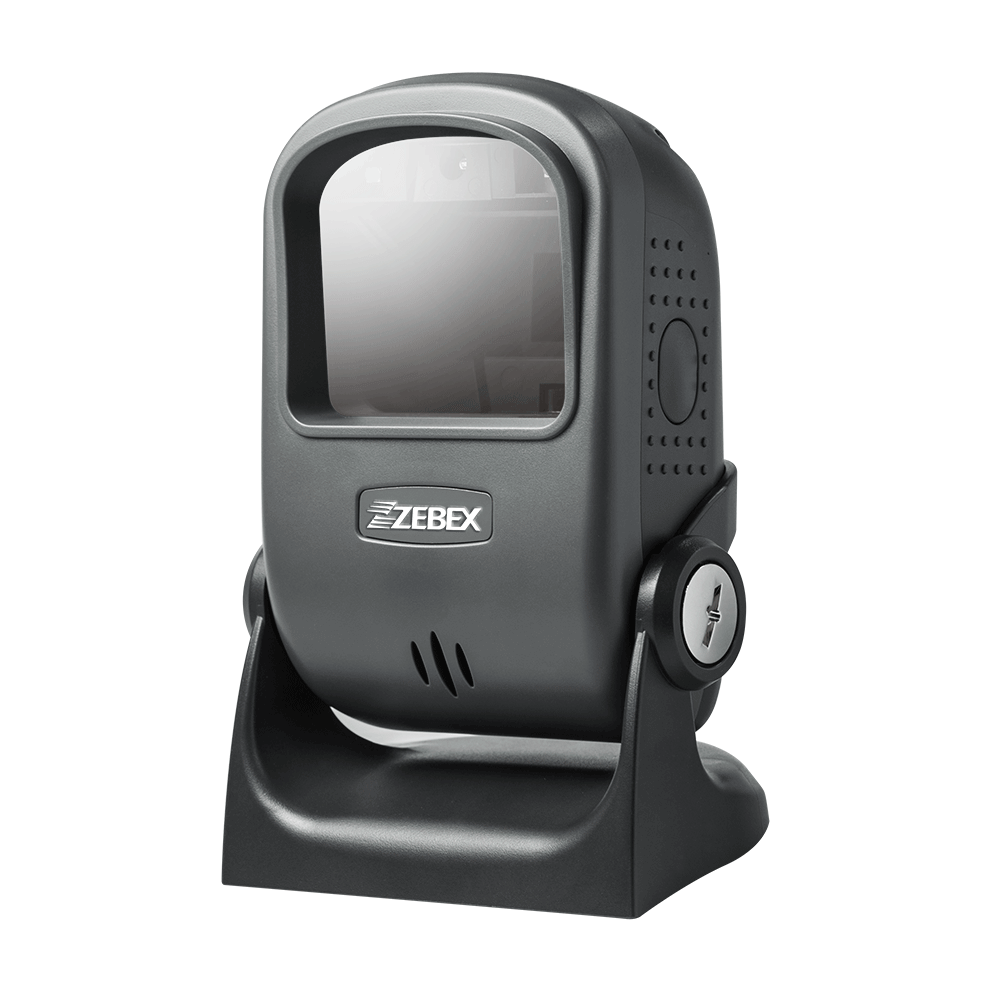

Z-8072 Ultra

2D Image Hands-Free Scanner

Z-8072 Ultra 2D Image Hands-Free Scanner
Z-8072 Ultra 2D Image Hands-Free Scanner
Z-8072 Ultra 2D Image Hands-Free Scanner
Z-8072 Ultra 2D Image Hands-Free Scanner
Z-8072 Ultra 2D Image Hands-Free Scanner
The Z-8072 Ultra 2D Image Hands-Free Scanner provides great features with enhanced performance.
The powerful 2D Scanner and the compact size allows users to aim intuitively with accuracy even if space is limited.
Furthermore, it is designed to read barcodes off smartphone screens even when they are in low backlight settings.
It is the perfect solution for any space-constrained environments.


• Enhanced to quickly scan a barcode at low-brightness on a smartphone screen
• Enhanced scanning on reflective surfaces
• Enhanced scanning sensitivity, range, and speed
• Enhanced readability in special environments
• Easy to use; setting change not necessary for different applications

Especificaciones

Aiming Element
617 nm LED
Illumination Element
617 nm LED
Optical System
1280H×800V pixels (1.0M)
Depth of Field
Code39 (5 mil): 0 – 50 mm
EAN13 (13 mil): 0 – 210 mm
Note: DOF may vary depending on environment condition and barcode quality.
Min. Bar Width
6.8 mil (PDF 417), 5 mil (Code 39)
Scan Angle
44.4° horizontal; 29.1° vertical
Print Contrast
30% @ UPC/EAN 100%
Indicator
Color LED
Programmable Operation
Scan Mode, Beeper tone
System Interface
RS-232, USB
Dimensions H x W x L
145 x 80.2 x 97.0 mm
Weight (g)
250 g
Input Voltage
5 VDC ± 10%
Operating Current
280 mA typical
EMC
CE, FCC, VCCI, BSMI
Safety
IEC 62471 Exempt
Operating Temperature
0° C ~ 50° C (32°F – 122°F)
Storage Temperature
-40°C - 70°C (-40°F – 158°F)
Humidity
5% – 95% RH (non-condensing)
Drop Durability
Designed to withstand 1M drops
1D Barcode
UPC/EAN [UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN], Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Matrix 2 of 5, Code11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
2D Barcode
PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C) , Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)
